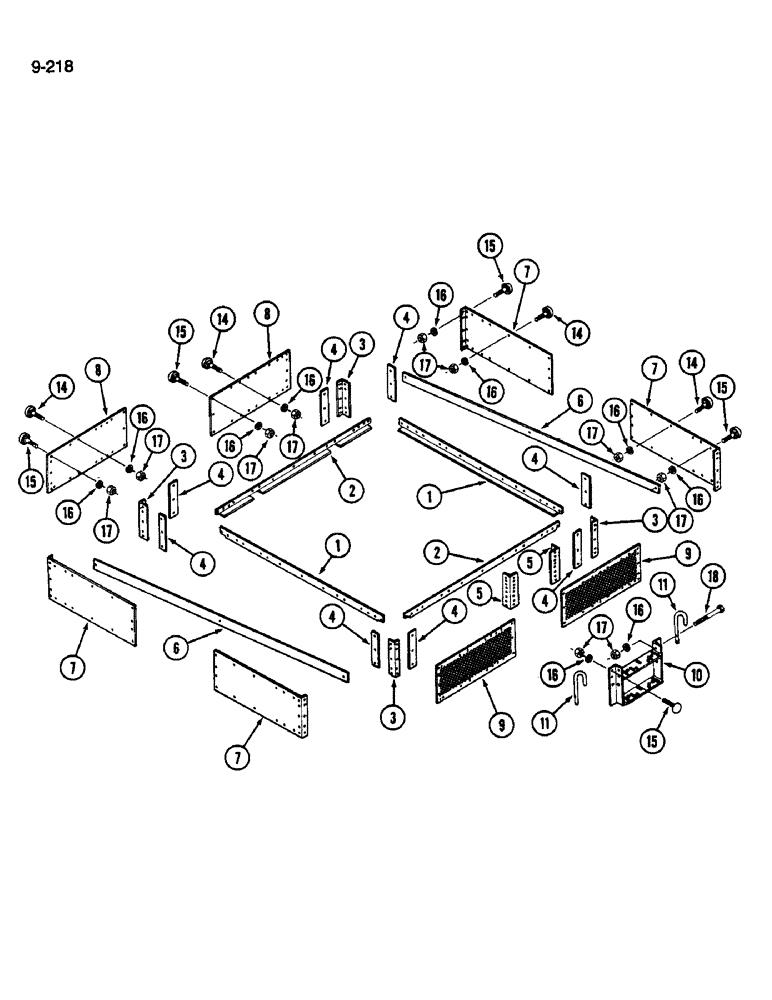

Запчасти Case IH 1844 (9-218) - BASKET EXTENSIONS, SHORT, 1844 COTTON PICKER (16) - BASKET

1

1260247C1

SUPPORT

ANGLE - extension side

2шт.

2

1260294C2

ANGLE BAR

ANGLE - extension end

2шт.

3

1278592C1

SUPPORT

ANGLE - extension corner support

4шт.

4

1288850C1

LARGE PLATE

PLATE - extension spacer

8шт.

5

1278603C1

ANGLE

- upper cover

4шт.

6

1278602C1

STRAP

- basket extension

2шт.

7

1278590C1

EXTENSION

- sheet side

4шт.

8

1278591C1

COVER

- basket extension end, rear

2шт.

9

87261C1

COVER

- basket extension end, front (Replaces 1278591C1)

2шт.

10

1278731C1

STEP

- basket

1шт.

11

1278736C1

COVER

HANDLE - basket

2шт.

14

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

38шт.

15

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

46шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

88шт.

17

120377

NUT,3/8" - 16, Gr 5

88шт.

18

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.
