(9-202) - BASKET FRONT, 1844 COTTON PICKER

Запчасти Case IH 1844 (9-202) - BASKET FRONT, 1844 COTTON PICKER (16) - BASKET

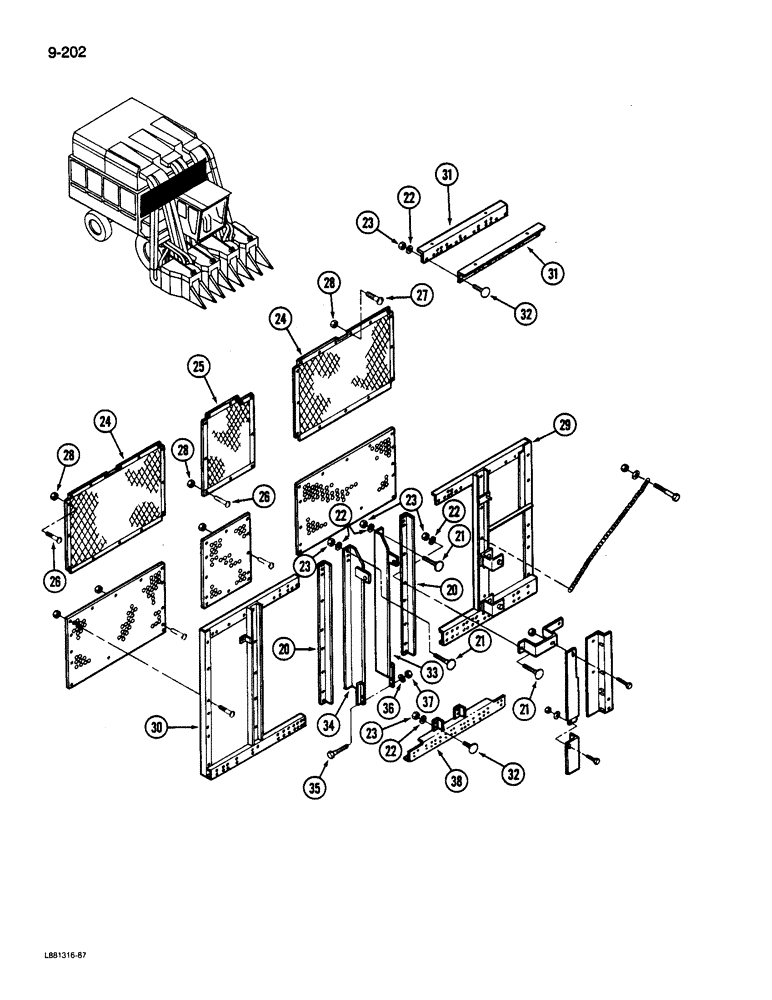

Схема запчастей Case IH 1844 - (9-202) - BASKET FRONT, 1844 COTTON PICKER (16) - BASKET
23
22
29
28
35
22
21
37
21
23
22
26
20
28
34
30
25
24
38
32
24
21
27
33
36
32
23
20
28
26
22
23
31
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87293C91

CONTAINER

BASKET ASSEMBLY - (See Note A and B)

1шт.

20

1260162C1

SUPPORT

RETAINER - screen

2шт.

21

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

22

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

23

120377

NUT,3/8" - 16, Gr 5

1шт.

24

1260164C1

SIEVE

SCREEN - basket

2шт.

25

1260181C1

SIEVE

SCREEN - center

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

1шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

28

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

29

1260226C6

END

- basket, left

1шт.

30

1260228C5

END

- basket, right

1шт.

31

1260244C2

SUPPORT

ANGLE - tie, upper

2шт.

32

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

33

1270136C3

ANGLE

BRACKET - lift, left

1шт.

34

1270137C3

ANGLE

BRACKET - lift, right

1шт.

35

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

36

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

37

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

38

1260318C2

CONDUIT

CHANNEL - tie

1шт.
