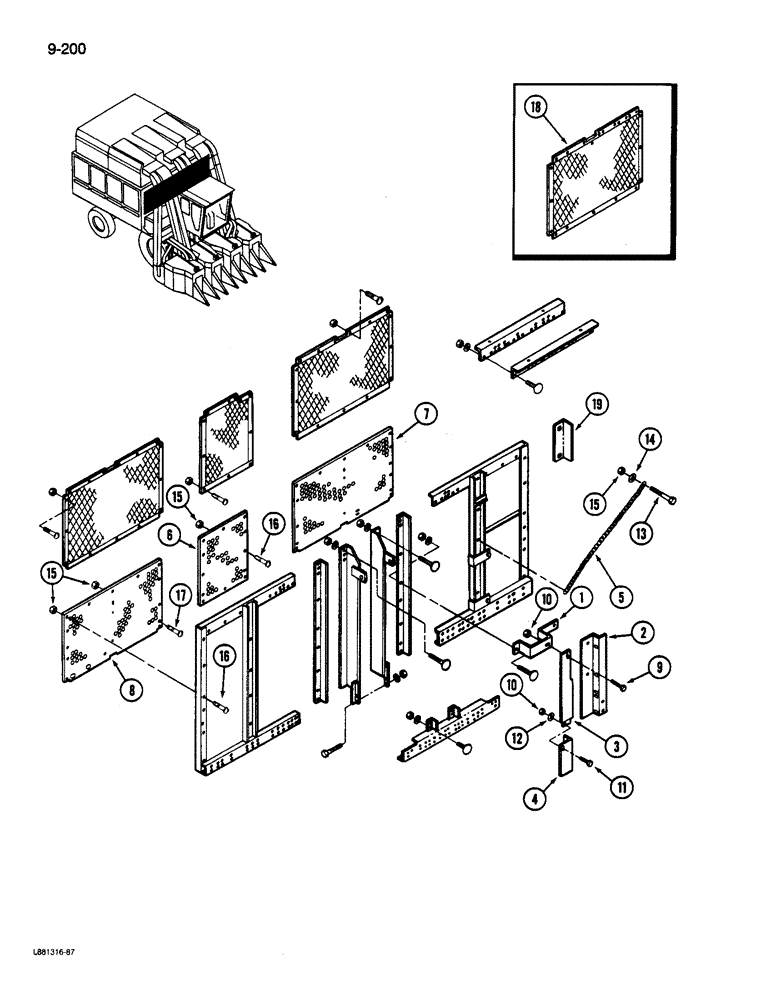

Запчасти Case IH 1844 (9-200) - BASKET FRONT, 1844 COTTON PICKER (16) - BASKET

87293C91

CONTAINER

BASKET ASSEMBLY (See Note A and B)

1шт.

1

87352C1

ANGLE BAR

ANGLE - guide

1шт.

2

87353C1

SUPPORT

- guide

1шт.

3

87357C1

GUIDE

- upper

1шт.

4

87360C2

GUIDE

- lower

1шт.

5

NSS

NOT SOLD SEPARAT

CHAIN - door (Order 33 links from roll ZAN4030136)

1шт.

REF

INSTRUCTION

CHAIN - bulk roll, 125 feet (38 m)(Order ZAN4030136)

1шт.

6

1260158C1

COVER

- lower, center

1шт.

7

1260160C1

COVER

- lower, left (replaces 120160C1)

1шт.

8

1329247C3

COVER

- lower, right

1шт.

9

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

1шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

1шт.

12

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

13

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

14

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

1шт.

18

1339132C1

SIEVE

SCREEN ASSEMBLY - basket, left front

1шт.

19

1329245C1

GUIDE

- door

1шт.
