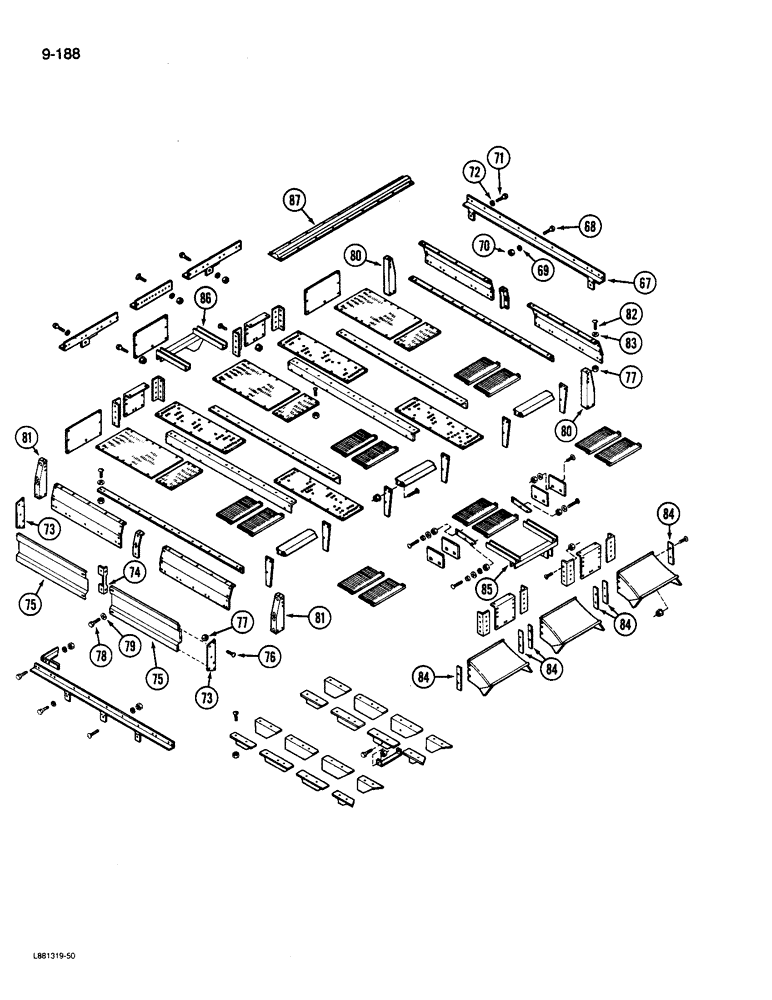

Запчасти Case IH 1844 (9-188) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

87295C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

67

1288785C2

SUPPORT

ANGLE - side, left

1шт.

68

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

69

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

70

120377

NUT,3/8" - 16, Gr 5

1шт.

71

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

72

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

73

1278767C1

LARGE PLATE

END - channel

2шт.

74

1278768C1

SUPPORT

- center

1шт.

75

1278766C2

CONDUIT

CHANNEL - side

2шт.

76

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

77

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

78

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

1шт.

79

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 3/64 inch

1шт.

80

1260278C1

LARGE PLATE

PLATE - end, left

2шт.

81

1260279C1

LARGE PLATE

PLATE - end, right

2шт.

82

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

83

120394

WASHER,3/8", SAE

WASHER - flat, 3/32 x 13/16 x 3/64 inch

1шт.

84

1270282C1

LARGE PLATE

BAR - spacer

12шт.

85

1278012C4

CHANNEL

- cylinder mount, front

1шт.

86

1278013C4

CHANNEL

- mount, rear

1шт.

87

87530C1

SUPPORT

- top (Replaces 1278681C1)

1шт.
