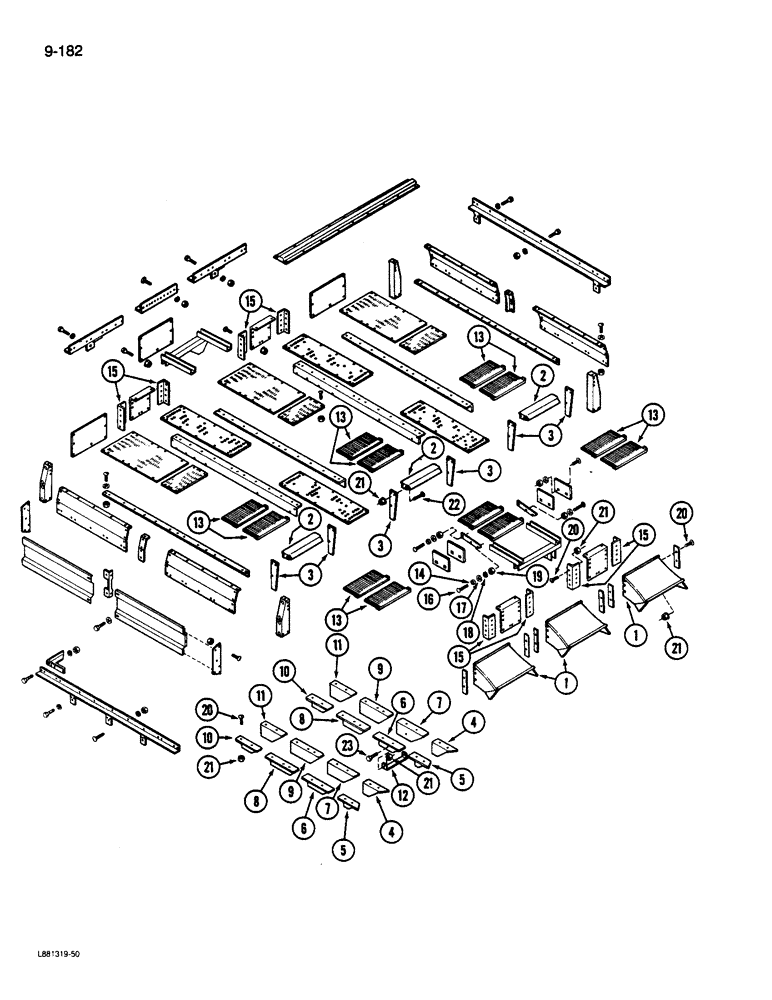

Запчасти Case IH 1844 (9-182) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

87295C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

1

87065C1

COVER

CHUTE

3шт.

2

87497C1

COVER

- grate (Replaces 86889C1)

3шт.

3

87049C1

LARGE PLATE

PLATE - grate, side

6шт.

4

87050C1

SUPPORT

ANGLE - front, left

2шт.

5

87051C1

SUPPORT

ANGLE - front, right

2шт.

6

87052C1

SUPPORT

ANGLE - middle, left

2шт.

7

87053C1

ANGLE

- middle, right

2шт.

8

87054C2

SUPPORT

ANGLE - middle rear, left

2шт.

9

87055C2

SUPPORT

ANGLE - middle rear, right

2шт.

10

87056C1

SUPPORT

ANGLE - rear, left

2шт.

11

87057C1

SUPPORT

ANGLE - rear, right

2шт.

12

87573C1

SUPPORT

ANGLE - brace

2шт.

13

221224C1

DEFLECTOR

- basket

10шт.

14

612233R1

SPACER,5/8" Tube x 1 1/8"

- tube, 5/8 x 1-3/16 inch

2шт.

15

223004C1

ANGLE

- support, without basket extensions

12шт.

15

223004C1

ANGLE

- support, with basket extension

8шт.

16

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

17

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

18

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

120377

NUT,3/8" - 16, Gr 5

2шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

21

482256

NUT - hex, 3/8 inch NC

1шт.

22

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 2 inch

12шт.

23

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex, 3/8 NC x 3/4 inch

1шт.
