(9-172) - BASKET COMPACTOR, 1844 COTTON PICKER

Запчасти Case IH 1844 (9-172) - BASKET COMPACTOR, 1844 COTTON PICKER (15) - HANDLING SYSTEM

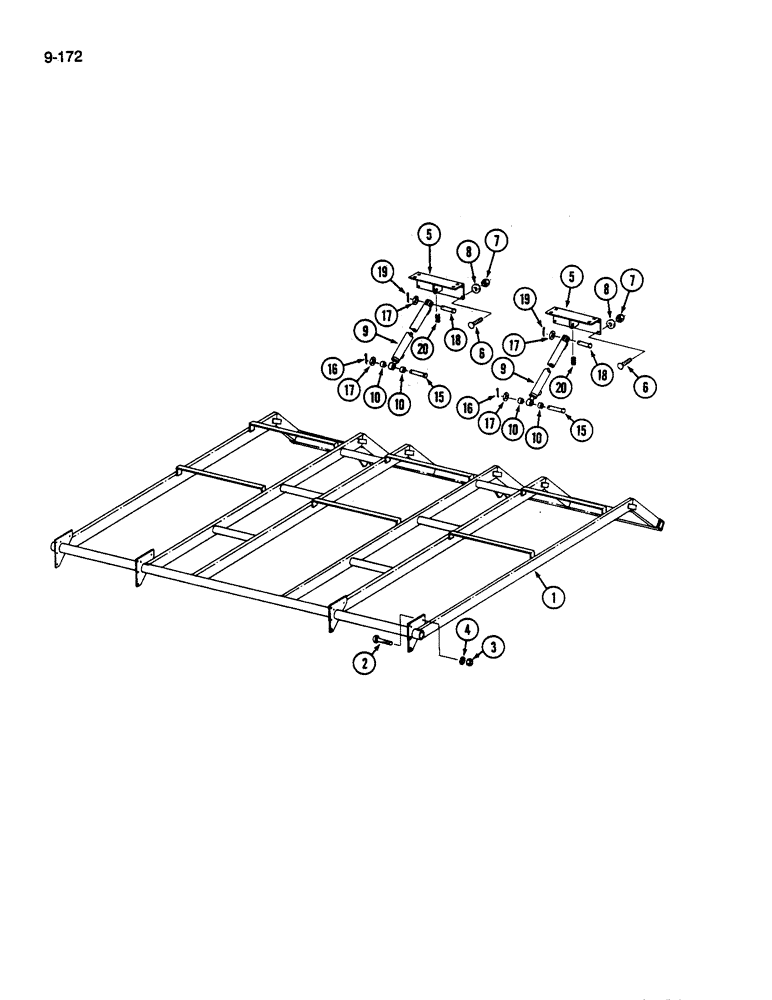

Схема запчастей Case IH 1844 - (9-172) - BASKET COMPACTOR, 1844 COTTON PICKER (15) - HANDLING SYSTEM
17
9
8
20
17
2
19
15
18
1
20
4
7
15
10
3
6
16
5
17
18
16
10
9
7
8
17
10
19
10
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270364C4

FRAME

- compactor

1шт.

2

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

20шт.

3

120377

NUT,3/8" - 16, Gr 5

20шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

5

1270373C4

SUPPORT

BRACKET - cylinder mounting

2шт.

6

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

7

17044R

NUT - hex lock, 3/8 inch NC

16шт.

8

390305C1

WASHER

- flat 13/32 x 13/16 x 1/16 inch

16шт.

9

REF

INSTRUCTION

CYLINDER - compactor (See Page 8-71)

2шт.

10

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

- tube, 7/8 x 5/8 inch

4шт.

15

305733R1

PIN - headed

2шт.

16

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

18

1338701C1

PIN

5/8 x 2-1/4 inch

2шт.

18

1338702C1

PIN

- 5/8 x 3-1/2 inch

2шт.

19

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

2шт.
