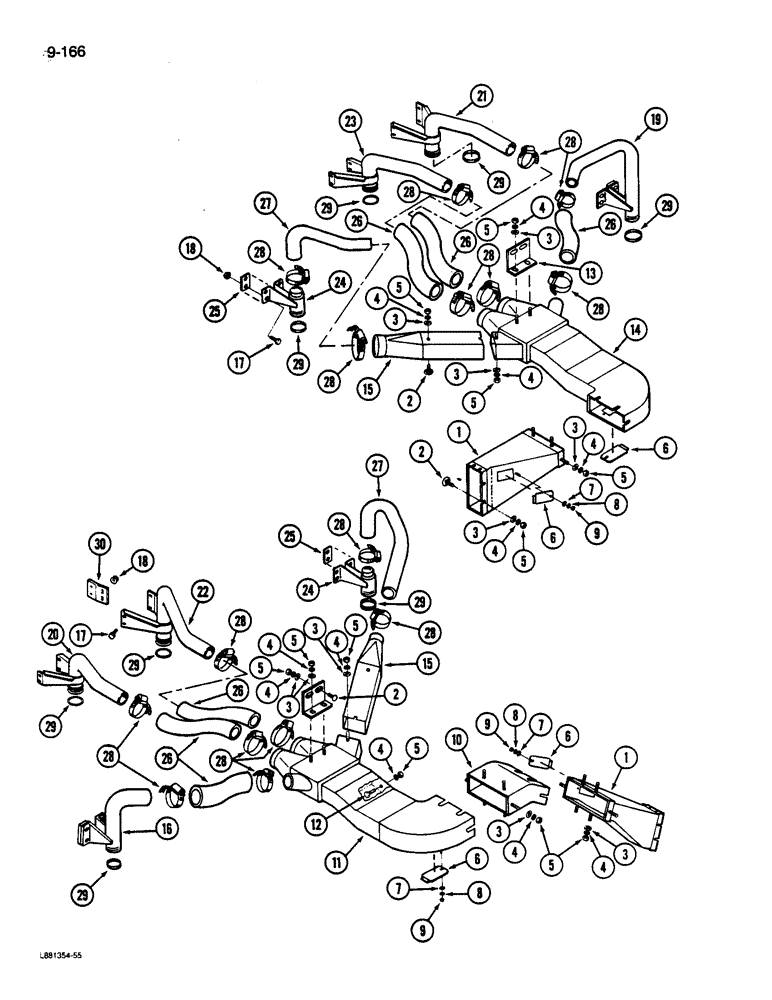

Запчасти Case IH 1844 (9-166) - AIR DUCTS AND HOSES, 1844 COTTON PICKER (15) - HANDLING SYSTEM

1

1270084C1

DUCT

- transition (Left and right sides)

2шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

22шт.

3

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm)

46шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

52шт.

5

120376

NUT,5/16"-18, G5

52шт.

6

1270220C1

COVER

- duct access

4шт.

7

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

1270166C1

DUCT

- elbow

1шт.

11

1270140C2

PIPE, EXHAUST SYSTEM

DUCT - air supply, left

1шт.

12

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

13

1270229C2

SUPPORT

BRACKET - duct, support

2шт.

14

1270090C2

PIPE, EXHAUST SYSTEM

DUCT - right

1шт.

15

1278744C1

PIPE, EXHAUST SYSTEM

DUCT - inner drum rear

2шт.

16

1339278C3

DUCT

- No. 1 drum rear (Replaces 1278758C1)

1шт.

17

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

32шт.

17

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- special lock

8шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

32шт.

19

1339279C3

DUCT

- No. 4 drum rear (Replaces 1278759C1)

1шт.

20

1338652C2

DUCT

- No. 1 drum front (Replaces 1278747C1)

1шт.

21

1338653C2

DUCT

- No. 4 drum front (Replaces 1278748C1)

1шт.

22

1338656C2

DUCT

- No. 2 drum front (Replaces 1278752C1)

1шт.

23

1338657C2

DUCT

- No. 3 drum front (Replaces 1278753C1)

1шт.

Cat 8-3052, ref 20, 21, 22, 23. the part numbers listed for references 20 - 23 are for 1988 and after productions. The part number in description column are for 1987 and prior production.

1шт.

24

1339277C2

DUCT

- No. 2 and 3 drum rear (Replaces 1278756C1)

2шт.

25

1288504C1

SPACER

PLATE - spacer

2шт.

26

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 31 inch (787 mm) (Order 1288985C1, Serial Range: cut-length)

6шт.

27

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 27 inch (686 mm) (Order 1288985C1, Serial Range: cut-length)

6шт.

1288985C1

HOSE

- air, bulk length

1шт.

28

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80 Type F

16шт.

29

28012R1

O-RING,-428, 90 Duro, 4.850" ID x .275" Thk

- 4-7/8 x 5-3/8 inch

8шт.

30

1338691C1

ANGLE

SUPPORT - duct

4шт.
