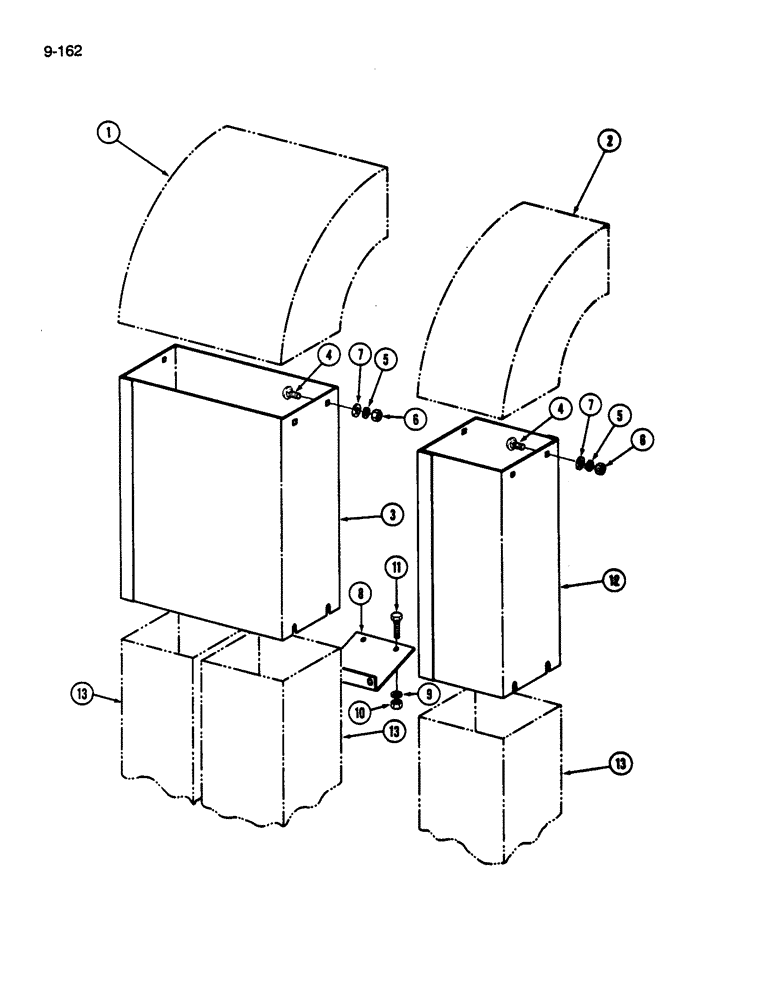

Запчасти Case IH 1844 (9-162) - CONVEYOR CHUTE LONG EXTENSIONS, 1844 COTTON PICKER (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

HOOD - double chute (See Figure 9-160)

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Figure 9-160)

4шт.

3

1278608C1

CHUTE ASSY.

CHUTE - long double, 23-13/32 inch

2шт.

4

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

24шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

6

120376

NUT,5/16"-18, G5

24шт.

7

NLS

NO LONGER SERVICED

- flat, 15/32 x 59/64 x 3/64 inch

24шт.

8

1278649C1

ANGLE BAR

ANGLE - front chute support

4шт.

Used with long extensions only.

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

Used with long extensions only.

1шт.

10

120377

NUT,3/8" - 16, Gr 5

8шт.

Used with long extensions only.

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

Used with long extensions only.

1шт.

12

1278604C1

CHUTE ASSY.

CHUTE - long single, 22 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main (See Figure 9-160)

8шт.
