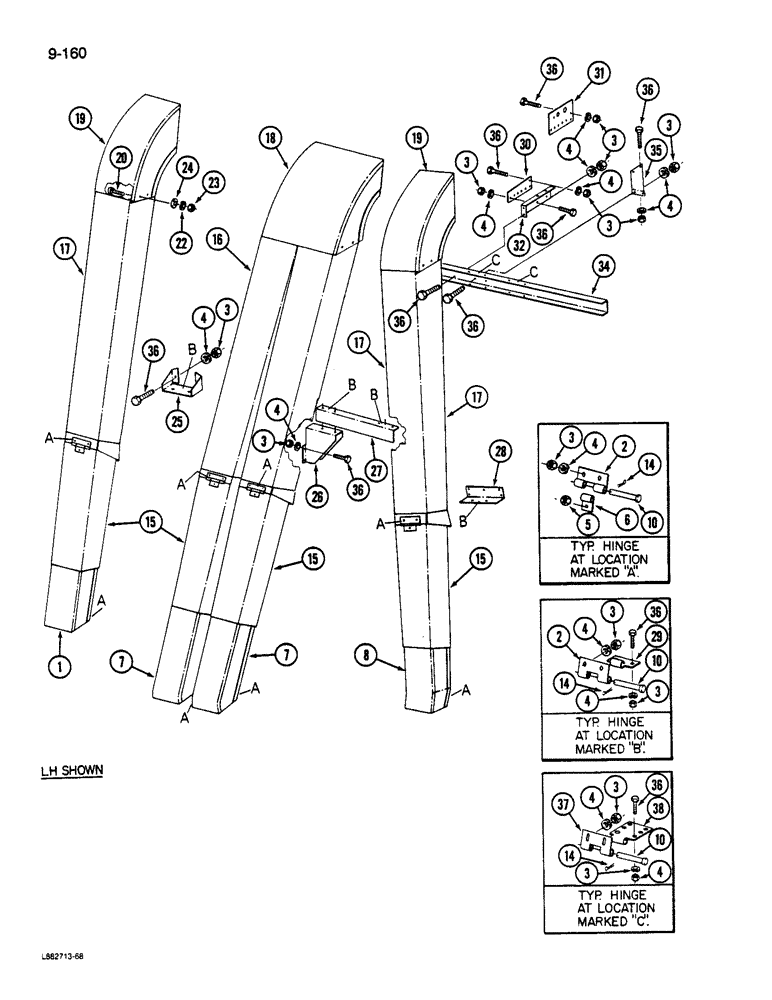

Запчасти Case IH 1844 (9-160) - CONVEYOR CHUTES, 1844 COTTON PICKER (15) - HANDLING SYSTEM

1

1278534C1

TUBE

CHUTE - lower slide, rear

2шт.

2

220402C1

HINGE

- chute

24шт.

3

120377

NUT,3/8" - 16, Gr 5

116шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

116шт.

5

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

16шт.

6

1270014C1

HINGE

- short

16шт.

7

1278539C1

TUBE

CHUTE - lower slide, front

4шт.

8

1278580C1

TUBE

CHUTE - lower outer, left (Shown)

1шт.

8

1278581C1

TUBE

CHUTE - lower outer, right

1шт.

10

1262749C1

HEADED PIN

PIN - headed, hinge (32 used without basket extension or with short basket extension or with short basket extension, 28 used with long basket extension)

1шт.

14

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (32 used without basket extension or with short basket extension, 28 used with long basket extension) 1/8" x 3/4"

1шт.

15

1278546C2

CHUTE ASSY.

CHUTE - upper slide

8шт.

16

1339124C1

CHUTE (DOWNWARD)

CHUTE - main, inner

2шт.

17

1278556C1

CHUTE (DOWNWARD)

CHUTE - main, outer

6шт.

18

1278549C2

HOOD

- double chute

2шт.

19

1278553C2

HOOD

- single chute

4шт.

20

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

22шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT - round head square neck, 5/16 NC x 1-1/2 inch (Right ladder rail) (Not shown)

2шт.

22

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

23

120376

NUT,5/16"-18, G5

24шт.

24

120395

WASHER

- flat, 15/32 x 59/64 x 3/64 inch

24шт.

25

1278617C1

SUPPORT

- rear, chute hinge

2шт.

26

1278620C1

SUPPORT

BRACKET - front, chute support

2шт.

27

1278621C2

ANGLE BAR

ANGLE - front, chute support

2шт.

28

1278622C1

ANGLE

- outer, chute support

2шт.

29

1278616C1

HINGE

- short

8шт.

30

1278640C1

LARGE PLATE

PLATE - chute support

1шт.

31

1285392C1

BRACKET

- basket, supply hose

1шт.

32

1278641C1

ANGLE BAR

ANGLE - upper chute support, left

1шт.

32

1278642C1

ANGLE BAR

ANGLE - upper chute support, right

1шт.

34

1278643C1

CHANNEL

- chute support

1шт.

35

1278645C1

SUPPORT

BRACE - upper channel support, lefi

1шт.

35

1278646C1

SUPPORT

BRACE - upper channel support, right

1шт.

36

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (48 used without basket extension or with short basket extension, 40 used with long basket extension

1шт.

37

1278647C1

HINGE

- slotted (8 used without basket extension or with short basket extension, 4 used with long basket extension

1шт.

38

1278648C1

HINGE

- slotted (8 used without basket extension or with short basket extension, 4 used with long basket extension

1шт.
