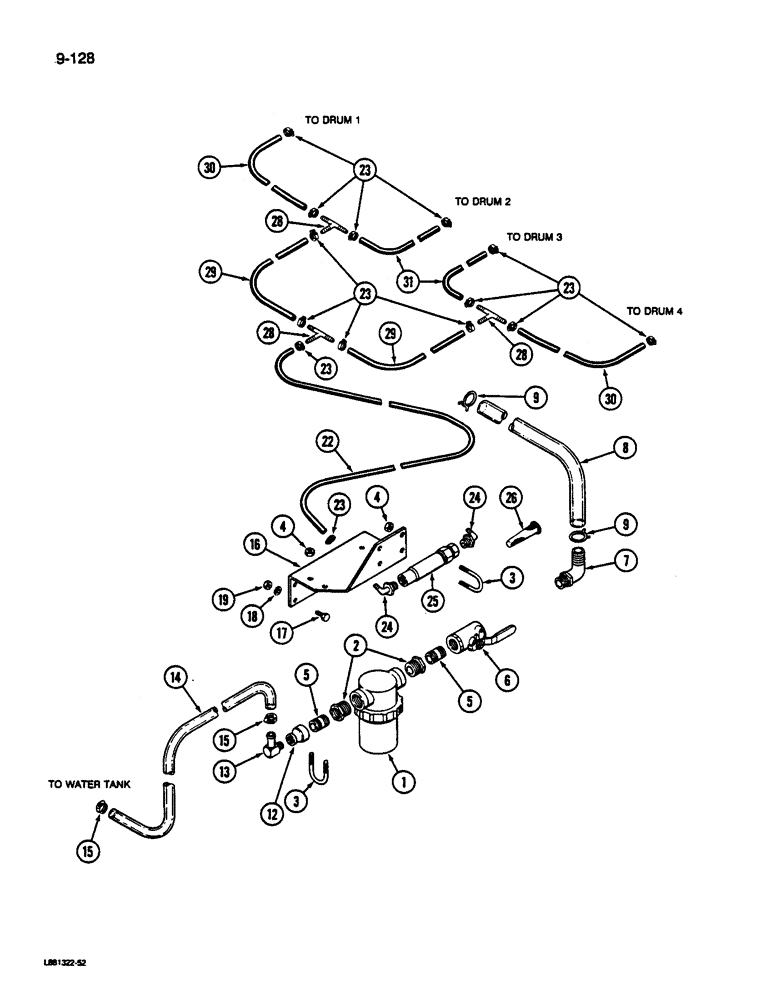

Запчасти Case IH 1844 (9-128) - WATER LINES, <11844 COTTON PICKER, P.I.N. 1001 AND AFTER (14) - WATER SYSTEM

1

REF

INSTRUCTION

EMBLY - water (See Page 9-133)

1шт.

2

117219

ADAPTER,1" NPT Male x 3/4" NPT Fem

1 to 3/4 inch PT

2шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

racket retaining

4шт.

4

9411655

LOCK NUT,3/8"-16, GB

lock, 3/8 inch NC

8шт.

5

28771R1

PIPE,Nipple, 3/4" NPT x 1 3/8", Brass

/4 x 1-3/8 inch PT

2шт.

6

222709C1

VALVE

MBLY - shutoff

1шт.

7

134271C1

ELBOW

se, 3/4 inch thread x 1 inch barb

1шт.

8

222711C1

, Serial Range: k-valve

1шт.

9

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

se retaining

2шт.

12

1338615C1

COUPLING

3/4 to 3/8 inch PT

1шт.

13

57964R1

FITTING

degree

1шт.

14

NSS

NOT SOLD SEPARAT

ter to pump, 80 inch long (Order 665181R1, Serial Range: cut-length)

1шт.

15

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

se retaining

6шт.

16

1339172C1

BRACKET

filter mounting

1шт.

17

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 NC x 3/4 inch

4шт.

18

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

19

120376

NUT,5/16"-18, G5

5шт.

22

NSS

NOT SOLD SEPARAT

ter, 75 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Retaining #06, .44/.78 Type F Worm

18шт.

24

1339135C1

ELBOW

barb, hose

2шт.

25

1339134C1

FILTER

ater, inline

1шт.

26

1339256C1

FILTER STRAINER

ilter

1шт.

28

1339010C1

FITTING

3/8 inch

3шт.

29

NSS

NOT SOLD SEPARAT

to drum, 60 inch (Order 1338159C1, Serial Range: cut-length)

4шт.

30

1338769C1

m, No. 1 and 4

2шт.

31

1338768C1

HOSE

m, No. 2 and 3

2шт.
