Запчасти Case IH 1844 (9-126) - WATER LINES, 1844 COTTON PICKER, P.I.N.701 THROUGH 1000 (14) - WATER SYSTEM

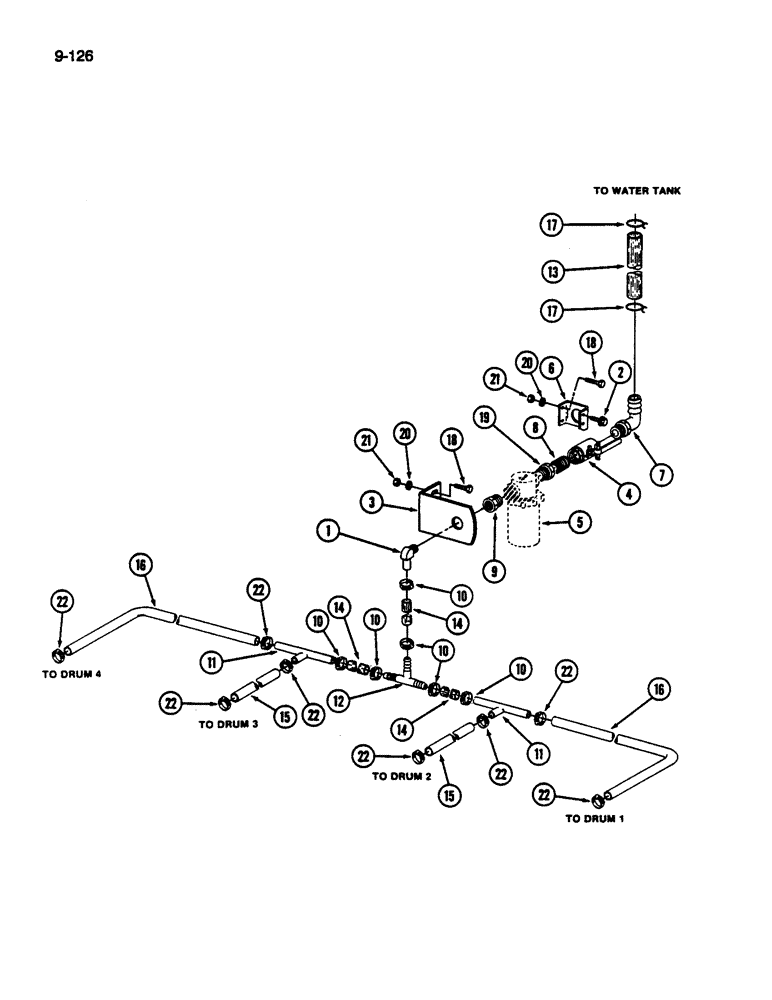

Схема запчастей Case IH 1844 - (9-126) - WATER LINES, 1844 COTTON PICKER, P.I.N.701 THROUGH 1000 (14) - WATER SYSTEM
20
8
19
22
13
18
3
16
2
6
22
22
15
10
14
1
22
10
22
10
22
17
4
11
14
17
15
22
16
22
7
20
21
5
18
21
9
10
11
12
10
14

Артикул

Название

Примечание

Количество

1

57964R1

FITTING

ELBOW - 90 degree

1шт.

2

423323

SCREW - hex with lockwasher, No. 10 NC x 7/16 inch

2шт.

3

1329207C1

ANGLE

- water filter support

1шт.

4

222709C1

VALVE

ASSEMBLY - shutoff

1шт.

5

REF

INSTRUCTION

FILTER ASSEMBLY - water (See Page 9-133)

1шт.

6

1329206C1

SUPPORT

- water filter

1шт.

7

134271C1

ELBOW

- hose, 3/4 inch thread x 1 inch barb

1шт.

8

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4 x 1-3/8 inch

1шт.

9

23921R1

ADAPTER - pipe, 1 to 3/8 inch

1шт.

10

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, No. 10 Type F

6шт.

11

665245R91

TEE

ASSEMBLY - water line

2шт.

12

1285274C1

TEE

- water line hose, 1/2 inch

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 27 inch (686 mm)(Order 2227C1 and, Serial Range: cut-length)

1шт.

222887C1

HOSE

- 50 foot roll

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - filter to pump, 70 inch (1 778 mm) (Order 665181R1 and, Serial Range: cut-length)

3шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 28 inch (711 mm)(Order 87769C1 and, Serial Range: cut-length)

2шт.

87769C1

FLEXIBLE HOSE

HOSE - 90 foot length

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 60 inch (1 524 mm)(Order 87769C1 and cut to length) 2

1шт.

17

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - hose, No. 20 Type E spring wire

2шт.

18

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

19

24175R1

BUSHING,1" NPT Male x 3/4" NPT Fem

ADAPTER - pipe, 1 to 3/4 inch

1шт.

20

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

120376

NUT,5/16"-18, G5

4шт.

22

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

8шт.

Выбрано товаров: 25
