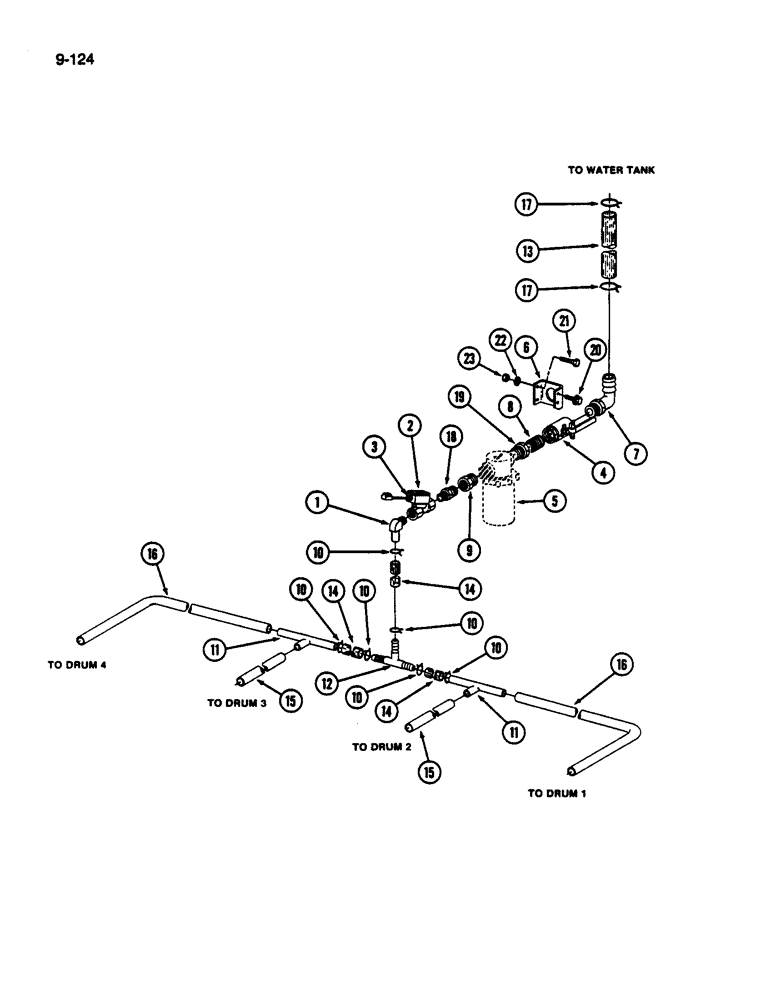

Запчасти Case IH 1844 (9-124) - WATER LINES, 1844 COTTON PICKER, PRIOR TO P.I.N. 701 (14) - WATER SYSTEM

1

57964R1

FITTING

ELBOW - 90 degree

1шт.

2

87211C91

VALVE

ASSEMBLY - water shutoff (Replaces 1260191C91)

1шт.

3

87251C1

BUSHING

- strain relief

1шт.

86834C1

KIT

VALVE KIT - water shutoff (For valves 87211C91 and 1260191C91)

1шт.

NSS

NOT SOLD SEPARAT

CAP - retaining

1шт.

NSS

NOT SOLD SEPARAT

SPRING - core

1шт.

NSS

NOT SOLD SEPARAT

GASKET - body

1шт.

NSS

NOT SOLD SEPARAT

CORE ASSEMBLY - valve

1шт.

4

222709C1

VALVE

- water shutoff

1шт.

5

REF

INSTRUCTION

FILTER ASSEMBLY - water (See Page 9-133)

1шт.

6

222742C1

SUPPORT

- water filter

1шт.

7

134271C1

ELBOW

FITTING - elbow

1шт.

8

190717

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe, 3/4 x 1 inch

1шт.

9

24174R1

BUSHING,1" NPT Male x 1/2" NPT Fem

ADAPTER - 1 to 1/2 inch

1шт.

10

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, No. 12, Type E

6шт.

11

665245R91

TEE

ASSEMBLY - water line

2шт.

12

1285274C1

TEE

- 1/2 inch

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 48 inch (1 219 mm)(Order 222887C1, Serial Range: cut-length)

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - valve to tee, 70 inch (1 778 mm)(Order 665181R1, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 12 inch (305 mm)(Order 665180R1, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 45 inch (1 143 mm)(Order 665180R1, Serial Range: cut-length)

1шт.

17

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - No. 20, Type E spring wire

2шт.

18

443992

REDUCER,1/2"-14 NPTF x 3/8"-18 NPTF

NIPPLE - 1/2 to 3/8 inch

1шт.

19

24175R1

BUSHING,1" NPT Male x 3/4" NPT Fem

ADAPTER - 1 to 3/4 inch

1шт.

20

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

- hex with lock washer, No. 10 NC x 7/16 inch

2шт.

21

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

120376

NUT,5/16"-18, G5

2шт.
