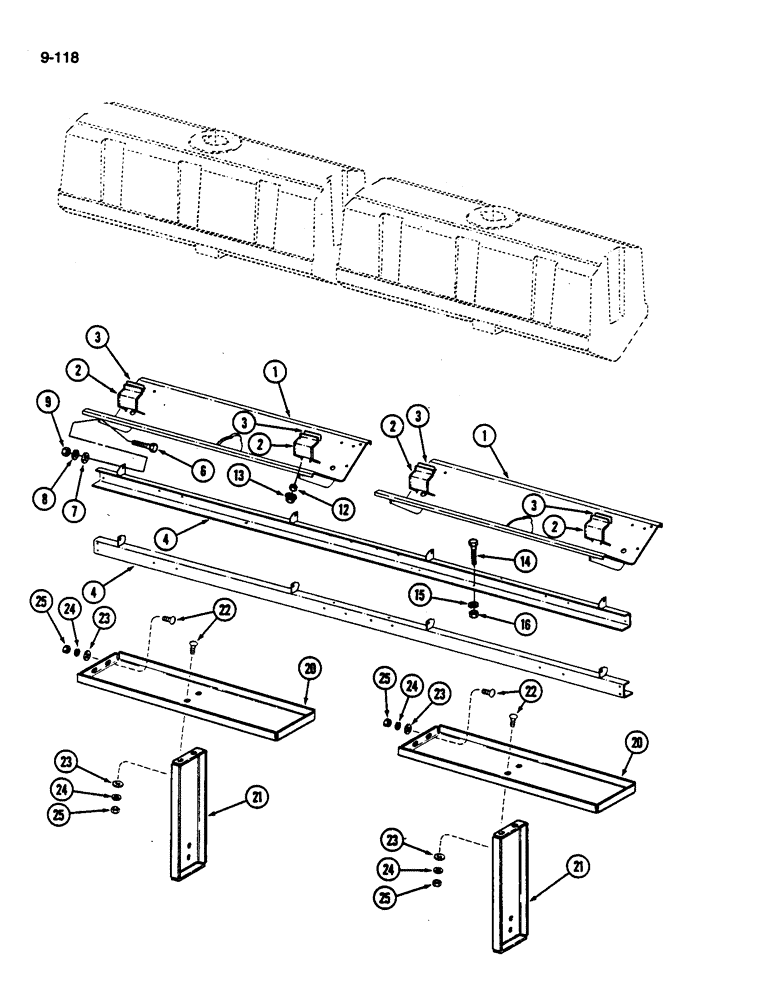

Запчасти Case IH 1844 (9-118) - WATER TANK SUPPORT, 1844 COTTON PICKER (14) - WATER SYSTEM

1

1339484C1

SUPPORT

SADDLE ASSEMBLY - tank (Replaces 141045C1)

2шт.

2

1339232C1

DECAL

BRACKET ASSEMBLY - tank retaining (Replaces 147419C1)

8шт.

3

1250768C1

STRIP

PAD - clamp

8шт.

4

1270191C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - water tank

2шт.

6

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

7

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

16шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

9

120377

NUT,3/8" - 16, Gr 5

8шт.

12

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

16шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

16шт.

14

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

15

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20

1329412C3

SHIELD

- water tank

2шт.

21

1329413C1

SUPPORT

- tank shield

2шт.

22

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 x 1 inch

8шт.

23

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 1-1/32 x 11/16 x 3/64 inch

4шт.

24

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

25

120376

NUT,5/16"-18, G5

8шт.
