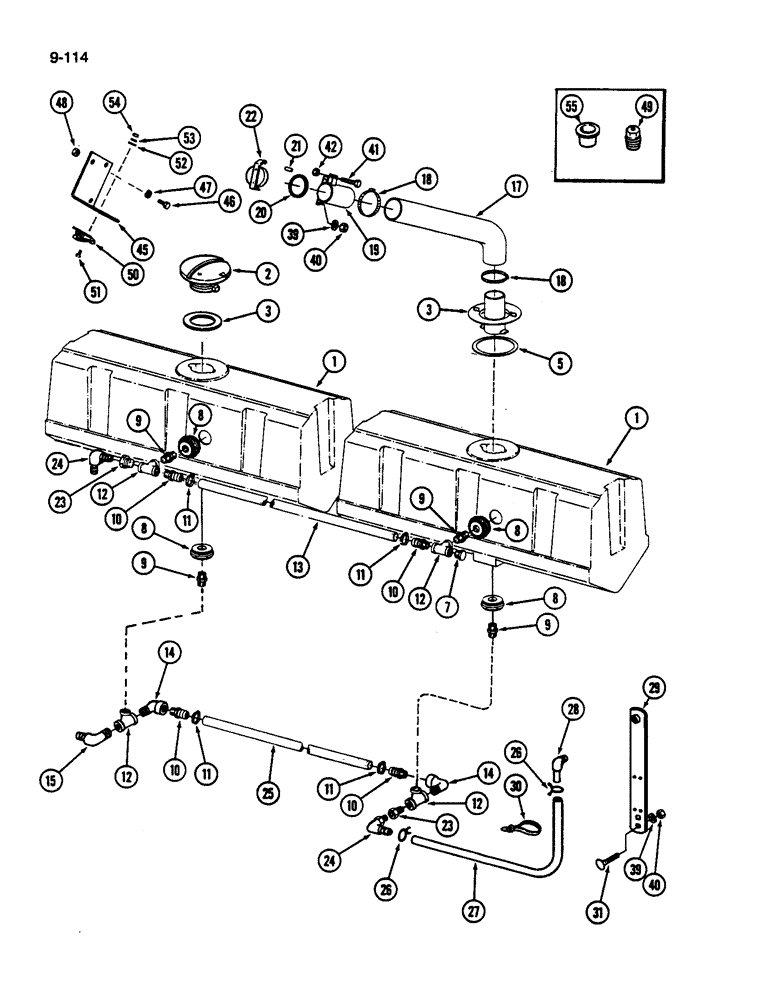

Запчасти Case IH 1844 (9-114) - WATER TANKS, 1844 COTTON PICKER (14) - WATER SYSTEM

1

1329203C1

HOPPER

TANK - water, 130 gallon

2шт.

1

NSS

NOT SOLD SEPARAT

TANK - water, 110 gallon (Order 1329203C1)

2шт.

2

1338661C1

CAP

ASSEMBLY - water tank

1шт.

3

1338641C1

GASKET

- tank cap

1шт.

4

1288910C3

CAP

ASSEMBLY - water tank

1шт.

5

1338641C1

GASKET

- tank cap

1шт.

7

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- male pipe, 1-1/4 inch

1шт.

8

1254377C1

FITTING

- hopper nylon

4шт.

9

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

4шт.

10

1264072C1

FITTING

- 1-1/4 x 1-1/2 inch

4шт.

11

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, No. 24, Type F

4шт.

12

1264067C1

FITTING

TEE - female, 1-1/4 inch PT

4шт.

13

NSS

NOT SOLD SEPARAT

HOSE - water, 71 inch (1 803 mm)(Order 1264065C1 and, Serial Range: cut-length)

1шт.

14

1264068C1

ELBOW

- 90 degree, 1-1/4 x 1-1/4 inch

2шт.

15

1261310C1

ELBOW

- 90 degree, 1-1/4 thread x 1 inch barb

1шт.

16

1270191C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - water tank

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE - filler 58-1/2 inch (1 486 mm)(Order 87273C1 and, Serial Range: cut-length)

1шт.

18

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP - Type F hose

2шт.

19

1288914C2

TUBE,81 mm Length

ASSEMBLY - water

1шт.

20

1338644C1

GASKET

GASKET - water fill cap

1шт.

73212C1

GASKET

SEAL - foam, 4 foot length

1шт.

21

65881H

SPACER,1/4" Pipe x 1 1/4"

- standard pipe, 1/4 x 1-1/4 inch

1шт.

22

86831C3

CAP ASSY.

CAP ASSEMBLY - water remote fill

1шт.

23

1329209C1

BUSHING

- reducer, 1-1/4 to 3/4 inch

2шт.

24

1329210C1

ELBOW

- hose, 3/4 thread x 1/2 inch barb

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - water, 79 inch (2 007 mm)(Order 1264065C1 and, Serial Range: cut-length)

1шт.

26

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, No. 12 Type E spring wire

2шт.

27

NSS

NOT SOLD SEPARAT

HOSE - sight gauge, 44 inch (1118 mm) (Order 665181C1 and, Serial Range: cut-length)

1шт.

28

667482R1

ELBOW

- 90 degree pipe

1шт.

29

1329234C1

BAR

ASSEMBLY - sight gauge (Replaces 1329208C1)

1шт.

30

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie, 6-3/4 inch long

2шт.

31

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - rounded head square neck, 3/8 NC x 1 inch

2шт.

39

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

40

120377

NUT,3/8" - 16, Gr 5

4шт.

41

180085

SPRING

- hex, 5/16 NC x 1-3/4 inch

1шт.

42

9413952

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

45

1338642C1

BRACKET

- fill cap latch

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

3шт.

47

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

48

120377

NUT,3/8" - 16, Gr 5

3шт.

49

684183R1

PLUG

- vent

1шт.

50

1333780C1

LATCH

- cap

1шт.

51

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head, No. 10-32 x 5/8 inch

2шт.

52

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

53

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

54

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

55

1339261C1

PLUG

- tank cap

1шт.
