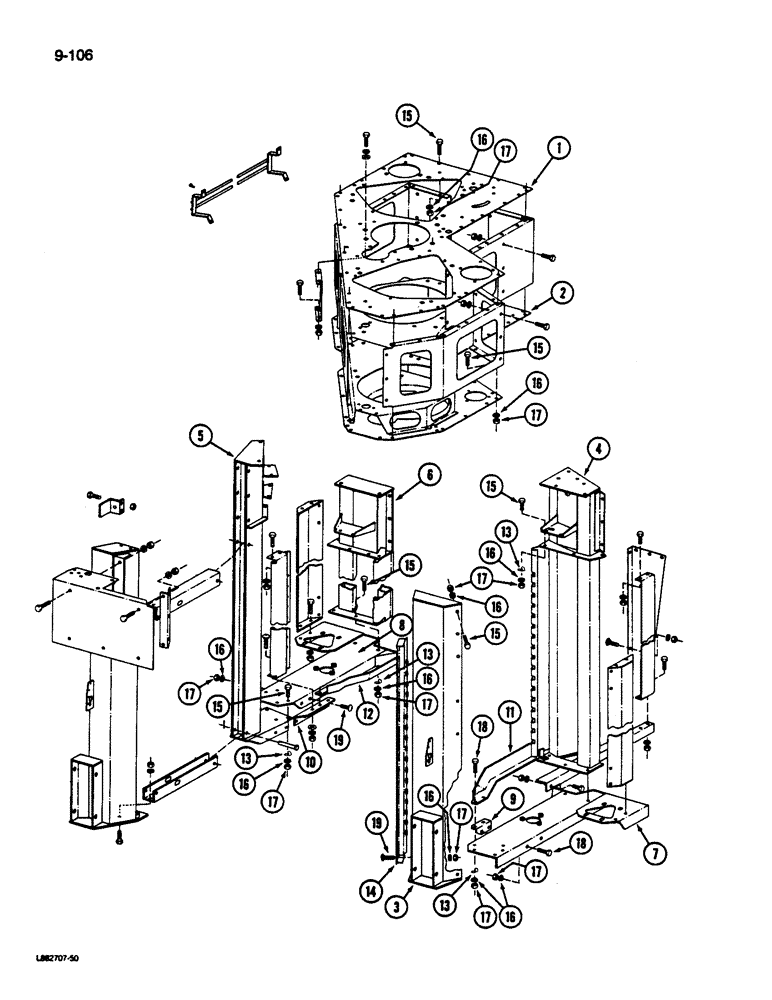

Запчасти Case IH 1844 (9-106) - DRUM HOUSING, 1844 COTTON PICKER (13) - PICKING SYSTEM

87328C92

HOUSING

ASSEMBLY - drum (No. 2 and 4 drurn) (Includes Ref. No. 1 through 36)

2шт.

87329C92

HOUSING

ASSEMBLY - drum (No. 1 and 3 drum) (Includes Ref. No. 1 through 36)

2шт.

1

223965C3

PLATE

- top

1шт.

2

223943C3

PLATE

- center (No. 2 and 4 drum)

1шт.

2

223944C3

PLATE

- center (No. 1 and 3 drum)

1шт.

3

223998C4

POST

- outer front (No. 2 and 4 drum)

1шт.

3

223999C4

POST

- outer front (No. 1 and 3 drum)

1шт.

4

1278351C4

POST

- outer rear (No. 2 and 4 drum)

1шт.

4

1278352C4

POST

- outer rear (No. 1 and 3 drum)

1шт.

5

1278338C7

POST

- inner front (No. 2 and 4 drum)

1шт.

5

1278339C7

POST

- inner front (No. 1 and 3 drum)

1шт.

6

1278344C2

POST

- inner rear (No. 2 and 4 drum)

1шт.

6

1278345C2

POST

- inner rear (No. 1 and 3 drum)

1шт.

7

223974C2

CHANNEL

- spindle, lower, left

1шт.

8

223975C2

CHANNEL

- spindle, lower, right

1шт.

9

1278479C1

ANGLE

SUPPORT - front, lower (No. 2 and 4 drum)

1шт.

9

1278480C1

ANGLE

SUPPORT - front, lower (No. 1 and 3 drum)

1шт.

10

223980C1

ANGLE

SUPPORT - rear, lower (No. 2 and 4 drum)

1шт.

10

223981C1

ANGLE

SUPPORT - rear, lower (No. 1 and 3 drum)

1шт.

11

223990C1

ANGLE

- wear, left

1шт.

12

223991C1

ANGLE

- wear, right

1шт.

13

670363R1

SHIM

- retaining

1шт.

14

223630C1

SUPPORT

- slat front (No. 2 and 4 drum)

1шт.

14

223631C1

SUPPORT

- slat front (No. 1 and 3 drum)

1шт.

15

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

1шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , If equipped 3/8"

1шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

18

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

- hex, 3/8 NC x 1 inch

1шт.

19

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.
