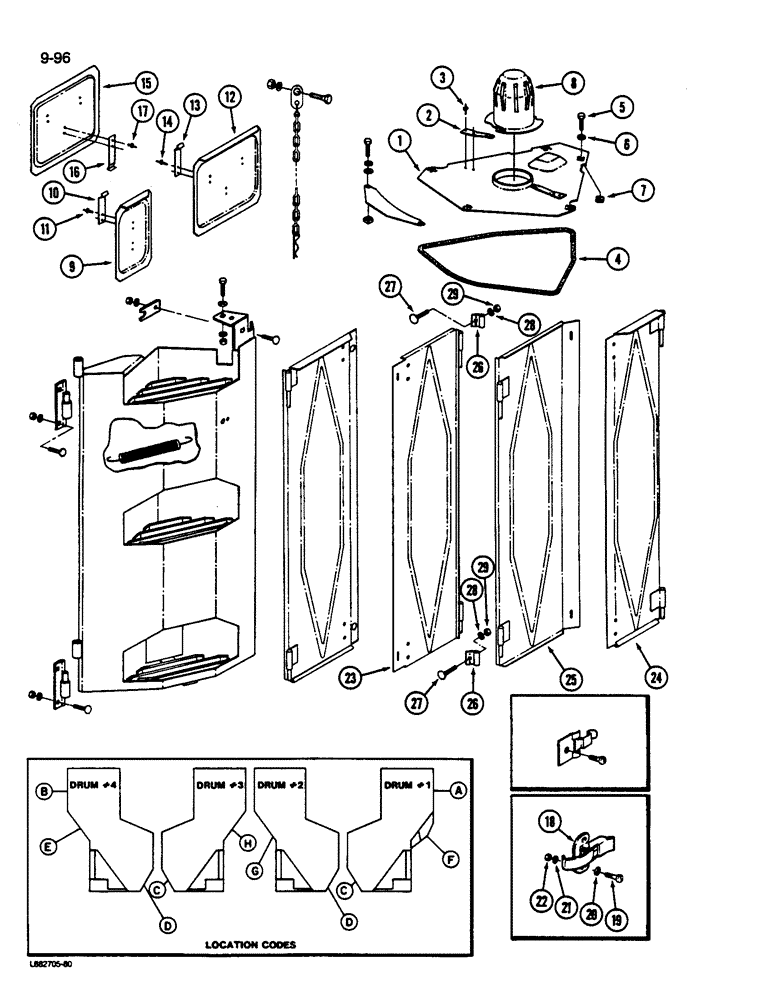

Запчасти Case IH 1844 (9-096) - DOOR, COVER AND STEP, 1844 COTTON PICKER (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
1278682C92
COVER ASSY
COVER ASSEMBLY - top
8шт.
2
1278684C1
CLIP
- cover
2шт.
3
201946C1
RIVET,Pop, 3/16" x .325"
- break mandrel, 5 x 8 mm
4шт.
4
NSS
NOT SOLD SEPARAT
SEAL - cover, 49-1/2 inch (1 257 mm) from bulk roll marked 57554C1
2шт.
57554C1
SEAL
- foam, 200 feet (61 m) bulk roll
1шт.
5
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
10шт.
6
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
10шт.
7
673689R1
NUT
- speed, 1/4 inch NC
10шт.
8
1278685C1
COVER
- rotor
8шт.
9
223791
COVER ASSEMBLY - wrap, small
24шт.
10
223793C1
CLIP
- spring
12шт.
11
201946C1
RIVET,Pop, 3/16" x .325"
- break mandrel, 5 x 8 mm
24шт.
12
223797C91
COVER
ASSEMBLY - wrap, large (See Note A)
1шт.
13
223793C1
CLIP
- spring
3шт.
14
201946C1
RIVET,Pop, 3/16" x .325"
- break mandrel, 5 x 8 mm
1шт.
15
87636C91
COVER
ASSEMBLY - wrap, large (See Note B)
1шт.
16
223793C1
CLIP
- spring
1шт.
17
201946C1
RIVET,Pop, 3/16" x .325"
- break mandrel, 5 x 8 mm
1шт.
18
1333780C1
LATCH
- door (No. 4 drum)(Replaces 669184R1)
2шт.
19
159920
SCREW,Cross Pan Hd, #10 - 24 x 1/2"
- slotted, No. 10 x 1/2 inch
4шт.
20
120391
WASHER,#10
- flat, 7/32 x 1/2 x 1/32 inch
4шт.
21
120217
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
22
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
23
1278819C2
DOOR
- drum, left (No. 1 drum)(Location A)
1шт.
23
1278820C2
DOOR
- drum, right (No. 4 drum)(Location B):
1шт.
24
1278821C3
DOOR
- access, left (No. 1 and 3 drum)(Location C)
2шт.
24
1278822C3
DOOR
- access, right (No. 2 and 4 drum)(Location D)
2шт.
25
1278824C2
DOOR
- access, left (No. 4 drum)(Location E)
1шт.
26
1278818C2
HINGE
- door (See Note C)
1шт.
27
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT - round head square neck, 3/8 NC x 1 inch
1шт.
28
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
29
120377
NUT,3/8" - 16, Gr 5
1шт.
Выбрано товаров: 32
