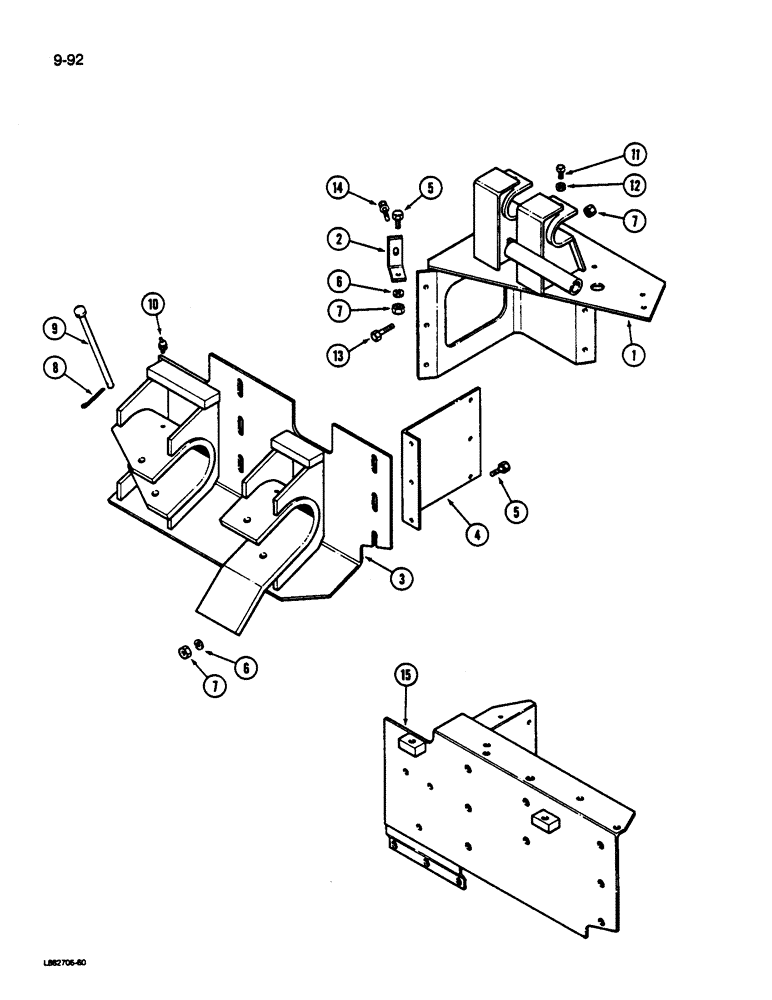

Запчасти Case IH 1844 (9-092) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM

1

1278267C1

HYDRAULIC LIFT

SUPPORT - radius rod, left (No. 4 drum on 1844 Cotton Picker)

1шт.

1

1278268C1

HYDRAULIC LIFT

SUPPORT - radius rod, right (No. 1 drum on 1844 Cotton Picker)

1шт.

1

1278925C1

SUPPORT

- radius rod, left (No. 2 drum on 1844 Cotton Picker) (Left drum 1822 Cotton Picker)

1шт.

1

1278926C1

SUPPORT

- radius rod, right (No. 3 drum on 1844 Cotton Picker) (Right drum on 1822 Cotton Picker)

1шт.

2

1278395C1

BRACKET

- mounting (One required per drum)

1шт.

3

1339167C1

SUPPORT

- pivot, left (No. 1 drum on 1844 Cotton Picker) (Replaces 1278493C4)

1шт.

3

1339168C1

SUPPORT ASSY.

SUPPORT - pivot, right (No. 4 drum on 1844 Cotton Picker) (Replaces 1278494C4)

1шт.

3

1339169C1

SUPPORT ASSY.

SUPPORT - pivot, left (No. 2 drum on 1844 Cotton Picker) (Left drum on 1822 Cotton Picker)(Replaces 1278491C3)

1шт.

3

1339170C1

SUPPORT

- pivot, right (No. 3 drum on 1844 Cotton Picker) (Right drum on 1822 Cotton Picker)(Replaces 1278492C3)

1шт.

4

1278504C1

BRACKET

- corner (One required per drum)

1шт.

5

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

- hex, 3/8 NC x 1 inch

1шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

120377

NUT,3/8" - 16, Gr 5

1шт.

8

486830R1

COTTER PIN

PIN - quick attaching

1шт.

9

28780R1

HEADED PIN,5/8" x 5 3/4"

PIN - headed 5/8 x 5-3/4 inch

1шт.

10

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - 65 degree grease, 1/4 inch

1шт.

11

84983

SET SCREW,3/8" x 1"

SCREW - square head set, 3/8 NC x 1 inch

1шт.

12

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

13

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

- hex, 3/8 NC x 1-3/4 inch (No. 2 and 3 drum on 1844 Cotton Picker)(Right and left drum on 1822 Cotton Picker) (One per drum)

1шт.

14

196471C1

BOLT,Hex, 3/8" - 16 x 1 1/4"

- hex, 3/8 NC x 1-1/4 inch (One per drum)

1шт.

15

1339161C1

SUPPORT

- drum lift, left fixed (Drum No. 1)

1шт.

15

1339162C1

SUPPORT ASSY.

SUPPORT - drum lift, right fixed (Drum No. 4)

1шт.

15

1339163C1

SUPPORT ASSY.

SUPPORT - drum lift, left fixed (Drum No. 2)

1шт.

15

1339164C1

SUPPORT

- drum lift, right fixed (Drum No. 3)

1шт.
