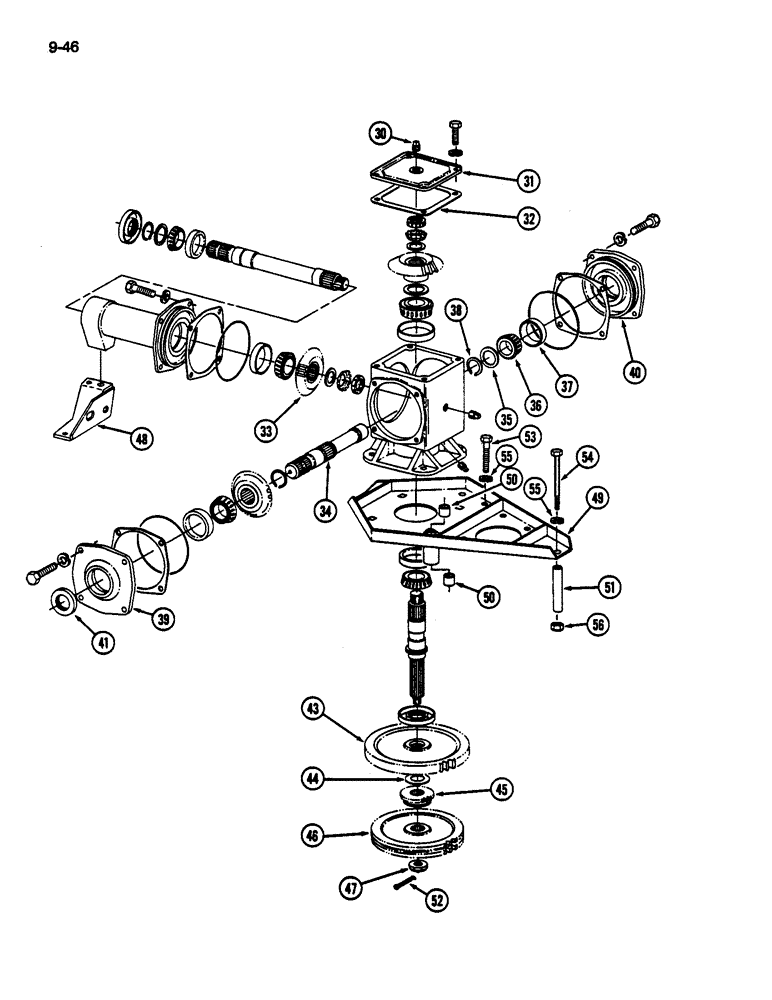

Запчасти Case IH 1844 (9-046) - GEAR BOX, DRUM NUMBER 2 AND 3, 1844 COTTON PICKER (13) - PICKING SYSTEM

86859C91

HOUSING ASSY.

GEAR BOX ASSEMBLY - drum 2

1шт.

86860C91

HOUSING ASSY.

GEAR BOX ASSEMBLY - drum 3

1шт.

30

250181R1

PLUG

- square head, 1/2-14 inch drilled

1шт.

31

223857C1

COVER

ASSEMBLY - drum drive housing

1шт.

32

86822C1

GASKET

- drum gear box

1шт.

33

223844C1

PINION

GEAR - drum drive horizontal output

1шт.

34

1286312C1

SHAFT

- drum drive output

1шт.

35

223866C1

WASHER

WASHER - bearing

1шт.

36

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE - bearing, outer

1шт.

37

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - bearing, outer

1шт.

38

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

39

1286295C1

BEARING CAP

- bearing support

1шт.

40

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

- bearing support

1шт.

41

358812R91

OIL SEAL

SEAL - horizontal shaft

1шт.

43

1266259C2

GEAR

- drum drive

1шт.

44

11926R

SHIM

- drum drive sprocket

1шт.

45

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

1шт.

46

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

1шт.

47

359040R1

NUT

- hex slotted, 7/8-14 inch

1шт.

48

REF

INSTRUCTION

BRACKET ASSEMBLY - housing support (See Page 9-35)

1шт.

49

87123C91

SUPPORT

ASSEMBLY - drum gear box, right, drum 3

1шт.

49

87122C91

SUPPORT

ASSEMBLY - drum gear box, left, drum 2

1шт.

50

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot

2шт.

51

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

1шт.

52

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

53

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- 1/2 NC x 1-1/2 inch

5шт.

54

25689R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 8

- 1/2 NC x 7-1/2 inch, Grade 8

1шт.

55

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

56

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
