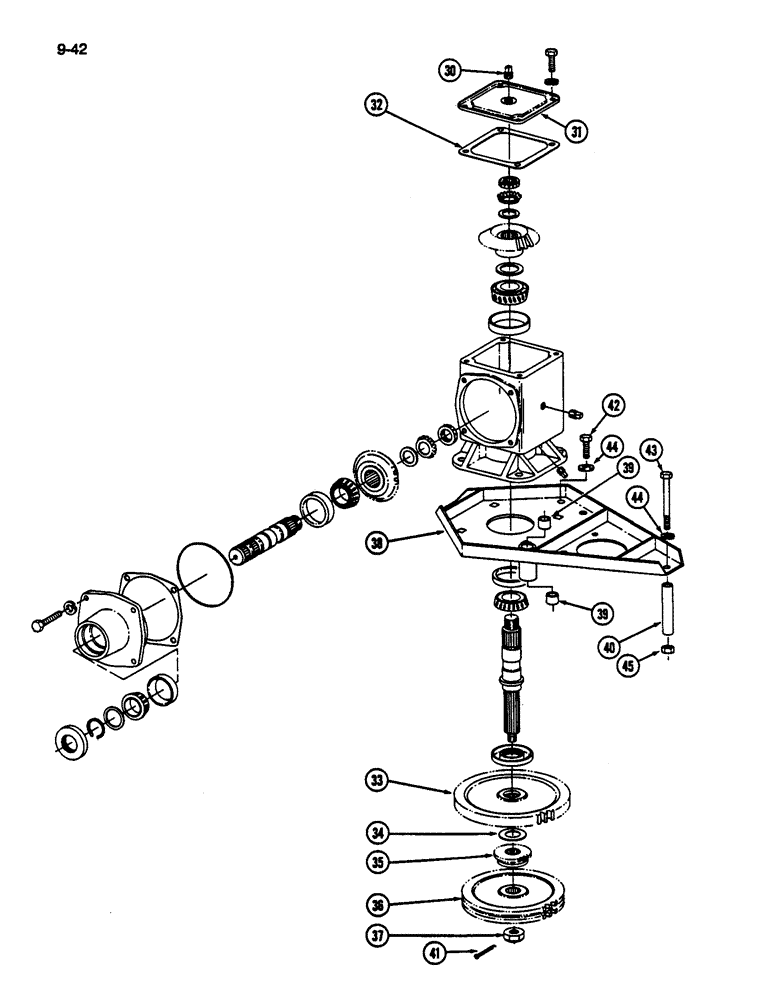

Запчасти Case IH 1844 (9-042) - GEAR BOX, DRUM NUMBER 1 AND 4, 1844 COTTON PICKER (13) - PICKING SYSTEM

86861C91

HOUSING ASSY.

GEAR BOX ASSEMBLY - drums 1 and 4

1шт.

30

250181R1

PLUG

- square head, drilled, 1/2-14 inch

1шт.

31

223857C1

COVER

ASSEMBLY - drum drive housing

1шт.

32

86822C1

GASKET

- drum gear box

1шт.

33

1266259C2

GEAR

- drum drive

1шт.

34

11926R

SHIM

- drum drive sprocket

1шт.

35

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

1шт.

36

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

1шт.

37

359040R1

NUT

- hex slotted. 7/8-14 inch

1шт.

38

87122C91

SUPPORT

ASSEMBLY - drum gearbox left, drum 4

1шт.

38

87123C91

SUPPORT

ASSEMBLY - drum gearbox right, drum 1

1шт.

39

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot

2шт.

40

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

2шт.

41

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

42

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

43

25689R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 8

- hex, 1/2 NC x 7-1/2 inch

2шт.

44

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

45

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
