Запчасти Case IH 1844 (9-312) - WEIGHTS AND BRACKETS, 1844 COTTON PICKER (12) - CHASSIS

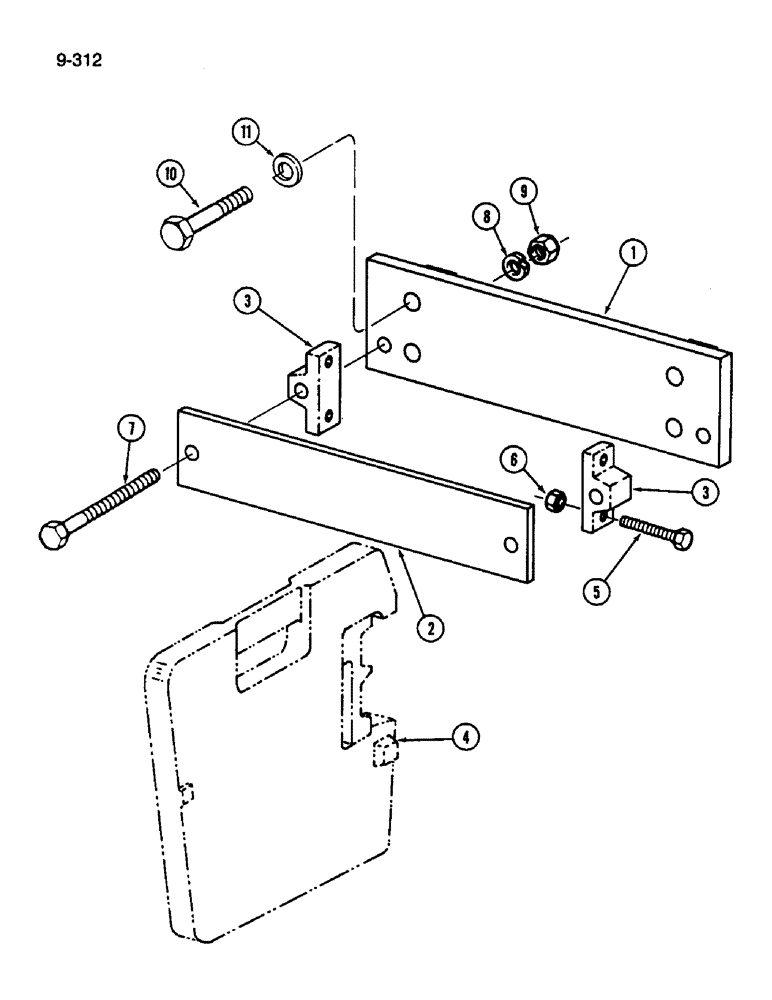

Схема запчастей Case IH 1844 - (9-312) - WEIGHTS AND BRACKETS, 1844 COTTON PICKER (12) - CHASSIS
5
3
3
4
1
8
7
2
10
6
9
11

Артикул

Название

Примечание

Количество

1

1288751C1

BRACKET

ASSEMBLY - weight

1шт.

2

1288753C1

BAR

- weight bracket

1шт.

3

1280684C1

BAR

- clamping

2шт.

4

1280656C1

WEIGHT

12шт.

5

87010C1

BOLT

- weight mounting

4шт.

6

30169R1

NUT,M12 x 1.75, Cl 10

- M12 PHC, Grade 10

4шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch , Course threads

2шт.

8

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

9

280954

NUT,3/4"-10, G5

2шт.

10

30111R1

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

- hex, M24 x 60 mm, Grade 10.9

4шт.

10

30120R1

BOLT,Hex, M24 x 120mm, Cl 10.9

- hex, M24 x 120 mm, Grade 10.9

4шт.

11

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

Выбрано товаров: 12
