(9-310) - STEPS AND LADDERS, 1844 COTTON PICKER

Запчасти Case IH 1844 (9-310) - STEPS AND LADDERS, 1844 COTTON PICKER (12) - CHASSIS

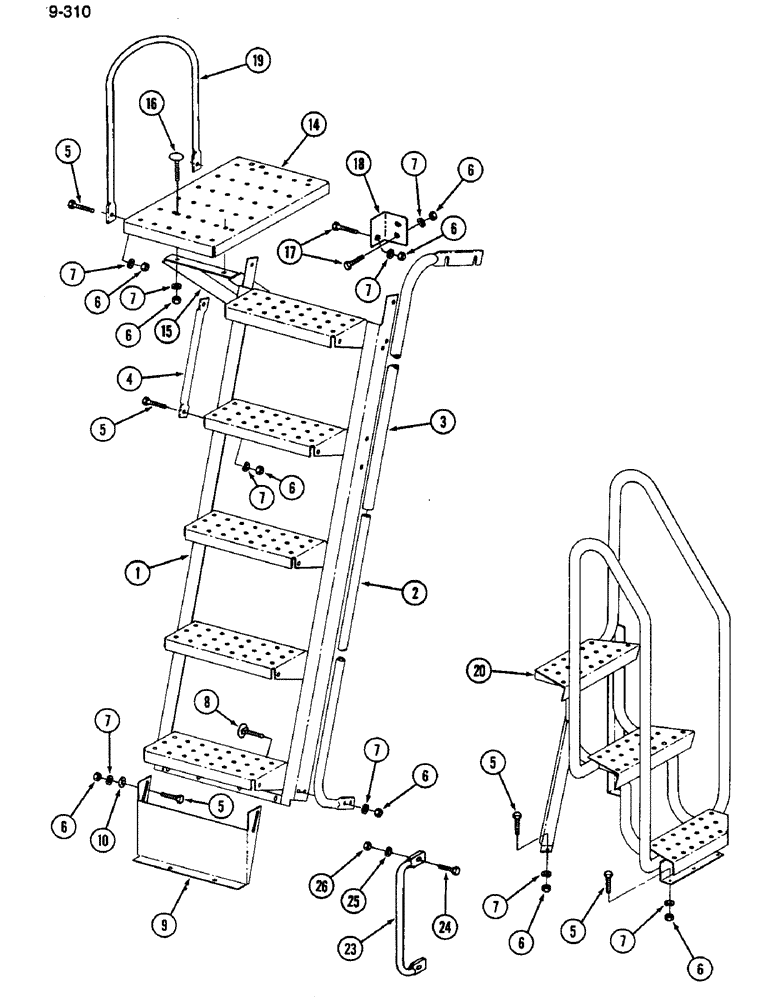

Схема запчастей Case IH 1844 - (9-310) - STEPS AND LADDERS, 1844 COTTON PICKER (12) - CHASSIS
6
26
5
25
9
7
7
1
5
20
8
7
15
7
14
6
2
6
7
7
6
24
10
23
6
18
6
5
7
6
6
4
17
5
5
3
19
7
6
16
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1278706C4

LADDER

- operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

1278712C2

RAIL

- ladder, outer

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

6шт.

6

120377

NUT,3/8" - 16, Gr 5

14шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

9

1266362C1

SUPPORT

- chute ladder

1шт.

10

NLS

NO LONGER SERVICED

- flat, 7/16 x 1 x 1/16 inch

2шт.

14

1278720C2

PLATFORM

- operators

1шт.

15

1278724C1

SUPPORT

BRACE - platform

1шт.

16

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

17

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - platform hand (Replaces 1278727C1)

1шт.

20

1278782C4

PLATFORM

- drum

1шт.

23

1321545C1

HANDLE

- drum grab

1шт.

24

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

25

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

120376

NUT,5/16"-18, G5

2шт.
