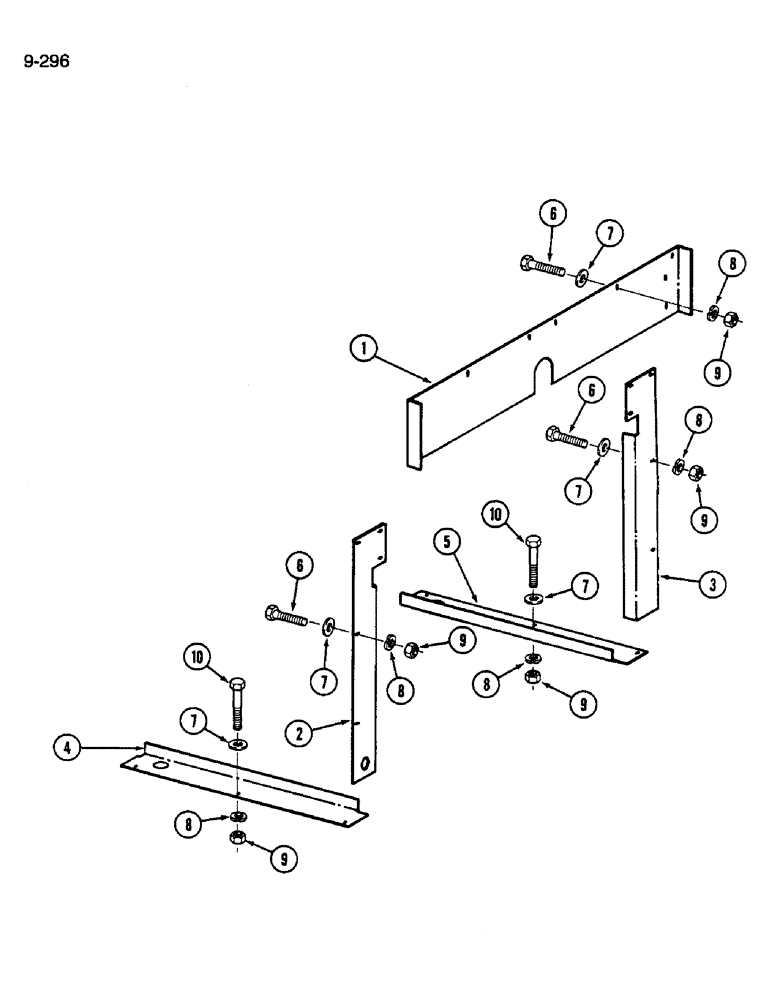

Запчасти Case IH 1844 (9-296) - FUEL TANK SHIELDS (12) - CHASSIS

1

1278728C1

COVER

- fuel tank upper

1шт.

2

1278729C1

COVER

- fuel tank side, left

1шт.

3

1278730C1

COVER

- fuel tank side, right

1шт.

4

1278522C1

SHEET

FILLER - fuel tank end, left

1шт.

5

1285410C3

SUPPORT

FILLER - fuel tank end, right

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

7

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

26шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

9

120376

NUT,5/16"-18, G5

16шт.

10

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

6шт.
