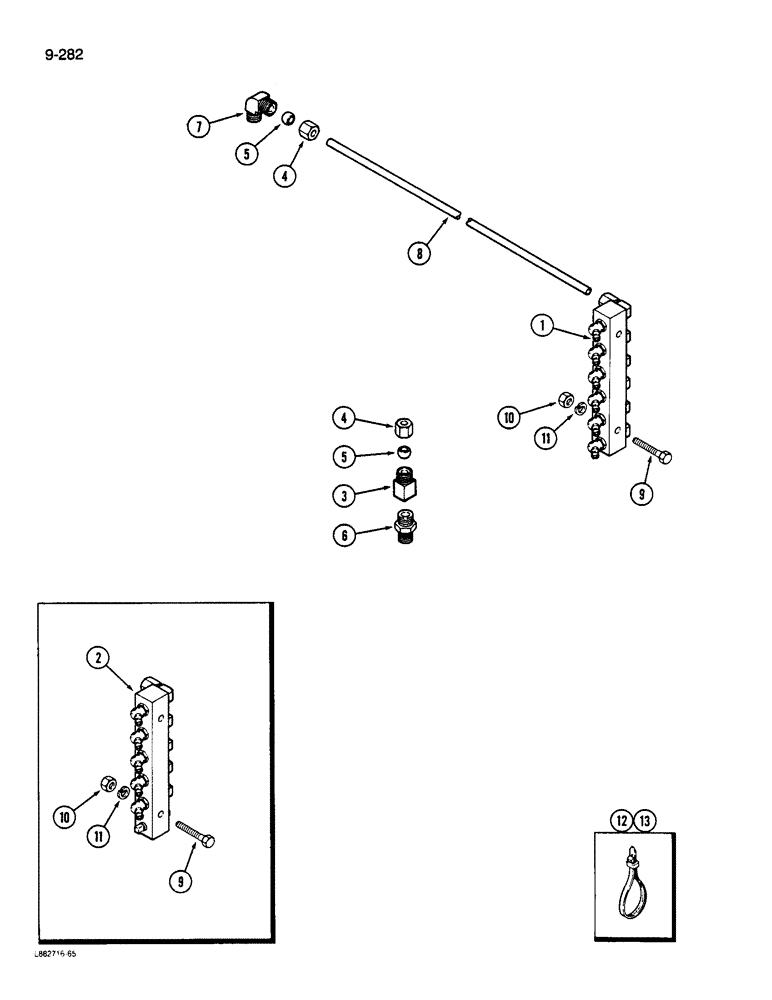

Запчасти Case IH 1844 (9-282) - CENTRALIZED CHASSIS GREASING ATTACHMENT, WITH NYLON TUBING (12) - CHASSIS

1

1329329C1

HEAT-EXCHANGER

HEADER - six stage greasing

1шт.

2

1329330C1

HEAT-EXCHANGER

HEADER - five stage greasing

1шт.

3

1329332C1

ADAPTER

- straight

3шт.

4

1329333C1

NUT

- compression

11шт.

5

1329334C1

SLEEVE

- compression

11шт.

6

1329335C1

ROD, CONNECTING

CONNECTOR - straight male

2шт.

7

1329336C1

ELBOW

- 90 degree male

9шт.

8

NSS

NOT SOLD SEPARAT

TUBING - grease line (Order 1329341C1, Serial Range: cut-length)

1шт.

1329341C1

HOSE

TUBING - grease line, 100 foot roll

1шт.

9

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

10

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - cable lock, 28-1/4 inch

6шт.

13

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable lock, 8 inch

20шт.
