Запчасти Case IH 1844 (9-278) - CHASSIS GREASE SYSTEM, 1844 COTTON PICKER WITH NYLON HOSE (12) - CHASSIS

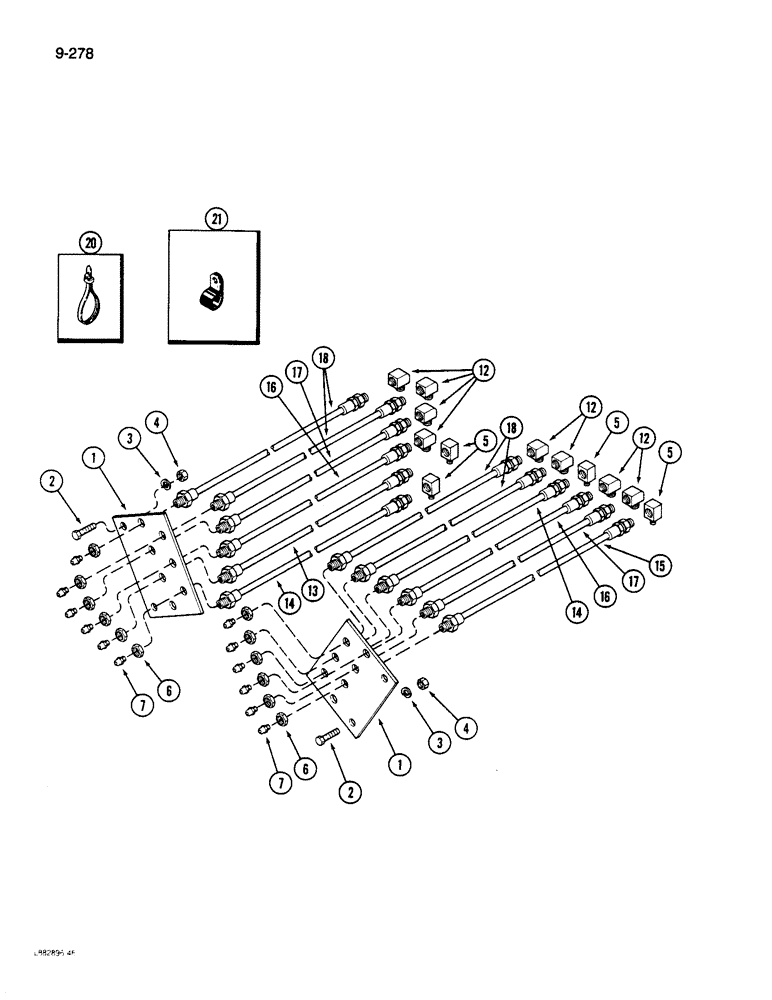

Схема запчастей Case IH 1844 - (9-278) - CHASSIS GREASE SYSTEM, 1844 COTTON PICKER WITH NYLON HOSE (12) - CHASSIS
1
14
17
17
13
3
4
5
12
5
14
18
18
2
12
1
21
12
6
6
15
3
7
2
4
7
16
16
20
5

Артикул

Название

Примечание

Количество

1

1339007C1

SUPPORT

- grease fitting

2шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree

4шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT

12шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

12шт.

12

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/8 inch PT

8шт.

13

1339231C1

TUBE,737 mm Length

HOSE - grease, 29,inch long

1шт.

14

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch long

2шт.

15

1339005C1

TUBE,1321 mm L

HOSE - grease, 52 inch long

1шт.

16

1339004C1

HOSE,3.17mm ID x 1778mm L

- grease, 70 inch long

2шт.

17

1339003C1

TUBE,2032 mm L

HOSE - grease, 80 inch long

2шт.

18

1339002C1

TUBE,2388 mm L

HOSE - grease, 94 inch long

4шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

16шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - retaining

3шт.

Выбрано товаров: 16
