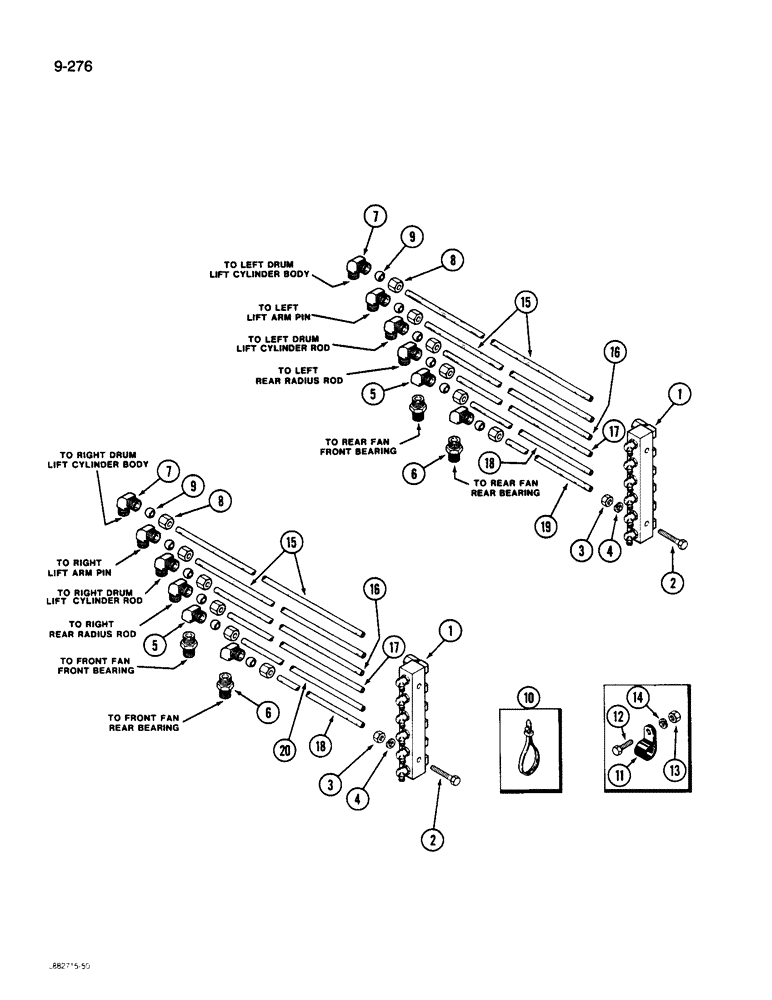

Запчасти Case IH 1844 (9-276) - CHASSIS GREASE SYSTEM, 1844 COTTON PICKER WITH NYLON TUBING (12) - CHASSIS

1

1329329C1

HEAT-EXCHANGER

HEADER - six stage greasing

2шт.

2

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

3

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

1329331C1

ELBOW

- 90 degree adapter

4шт.

6

1329335C1

ROD, CONNECTING

CONNECTOR - straight male

4шт.

7

1329336C1

ELBOW

CONNECTOR - elbow

8шт.

8

1329333C1

NUT

- compression

12шт.

9

1329334C1

SLEEVE

- compression

12шт.

10

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable lock

16шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP

5шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

13

120377

NUT,3/8" - 16, Gr 5

2шт.

14

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

NSS

NOT SOLD SEPARAT

TUBING - grease line, 94 inch (2388 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

16

NSS

NOT SOLD SEPARAT

TUBING - grease line, 80 inch (2032 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

17

NSS

NOT SOLD SEPARAT

TUBING - grease line, 70 inch (1778 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

18

NSS

NOT SOLD SEPARAT

TUBING - grease line, 36 inch (914 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

19

NSS

NOT SOLD SEPARAT

TUBING - grease line, 24 inch (610 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

20

NSS

NOT SOLD SEPARAT

TUBING - grease line, 54 inch (1321 mm) (Order 1329341C1, Serial Range: cut-length)

4шт.

1329341C1

HOSE

UBING - grease line, 100 foot roll

1шт.
