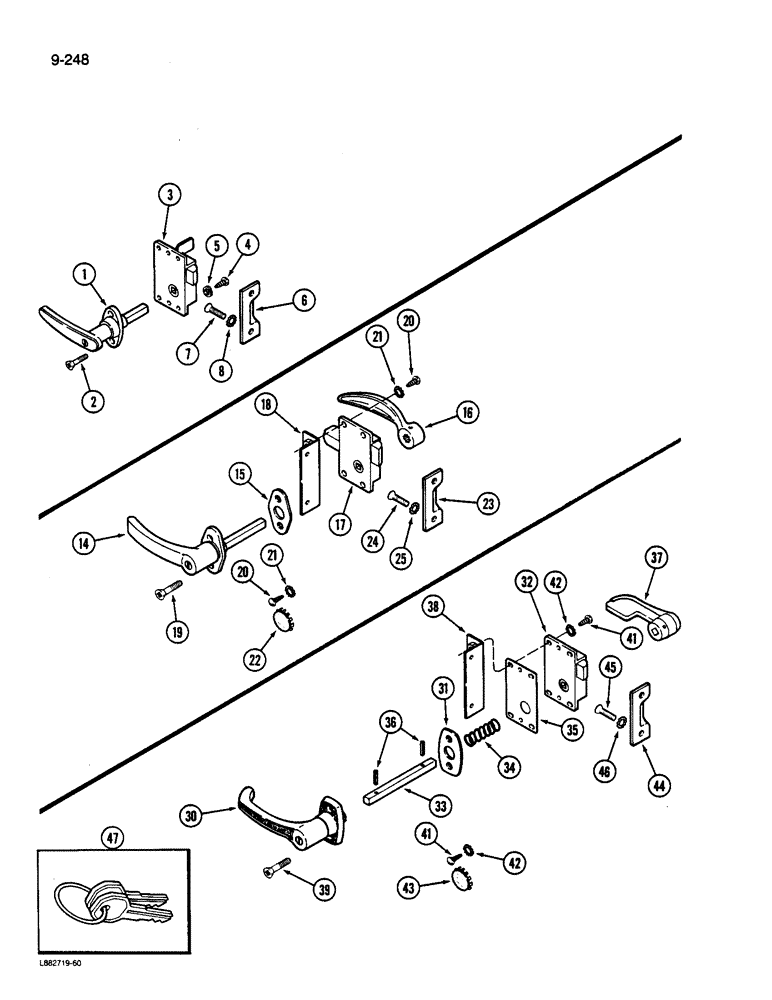

Запчасти Case IH 1844 (9-248) - CAB DOOR UPPER HANDLE, 1844 COTTON PICKER (10) - CAB & AIR CONDITIONING

1

175566C1

HANDLE

ASSEMBLY - door outside lock, Serial Range: -701

1шт.

2

28595R1

SCREW

- oval head cross recess, No, 10 NF x 3/4 inch, Serial Range: -701

2шт.

3

178748C2

LOCK

LATCH ASSEMBLY - door inside, Serial Range: -701

1шт.

4

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess tap, No. 10 NF x 1/2 inch, Serial Range: -701

4шт.

5

120217

LOCK WASHER,#10

WASHER, LOCK, #10, Serial Range: -701

4шт.

6

392801R3

LATCH

STRIKER - door catch, Serial Range: -701

1шт.

7

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- oval head cross recess, 1/4 NC x 1/2 inch, Serial Range: -701

2шт.

8

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - external lock, Serial Range: -701

2шт.

1329468C1

HANDLE

ASSEMBLY - door upper (Hanson Manufacturer) (Alternate with below Trimark Manufactured handle), Includes: Ref. 14 - 17, Start Serial: 701

1шт.

14

NSS

NOT SOLD SEPARAT

HANDLE - outside door lock, Start Serial: 701

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - outside handle, Start Serial: 701

1шт.

16

NSS

NOT SOLD SEPARAT

HANDLE - inside, Start Serial: 701

1шт.

17

NSS

NOT SOLD SEPARAT

LATCH - door, Start Serial: 701

1шт.

18

1340184C1

SEAT

ANGLE ASSEMBLY - latch support, Start Serial: 701

1шт.

19

28595R1

SCREW

- oval head cross recess, No, 10 NF x 3/4 inch, Start Serial: 701

2шт.

20

28751R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recess tap, No. 10 NF x 3/4 inch, Start Serial: 701

8шт.

20

28751R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recess tap, No. 10 NF x 3/4 inch, Start Serial: 701

8шт.

21

NLS

NO LONGER SERVICED

WASHER - lock, external, No. 10, Start Serial: 701

8шт.

22

28388R1

HOLE PLUG BUTTON,27/32"

PLUG - button, 27/32 inch hole (Lower handle hole), Start Serial: 701

1шт.

23

392801R3

LATCH

STRIKER - door catch, Start Serial: 701

1шт.

24

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- oval head cross recess, 1/4 NC x 1 inch, Start Serial: 701

2шт.

25

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - external lock, 1/4 inch, Start Serial: 701

2шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSEMBLY - door upper (Trinnark Manufacturer) (Alternate with above Hansen Manufactured handle) (Order 1329468C1), Includes: Ref. 30 - 37, Start Serial: 701

1шт.

30

NSS

NOT SOLD SEPARAT

HANDLE - outside door lock, Start Serial: 701

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - door handle, Start Serial: 701

1шт.

32

NSS

NOT SOLD SEPARAT

LATCH ASSEMBLY - door inside, Start Serial: 701

1шт.

33

NSS

NOT SOLD SEPARAT

BAR - drive door latch, Start Serial: 701

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - latch bar, Start Serial: 701

1шт.

35

NSS

NOT SOLD SEPARAT

SHIM - latch ack, Start Serial: 701

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - slotted spring, M4 x 22 mm, Start Serial: 701

2шт.

37

NSS

NOT SOLD SEPARAT

HANDLE - inside, Start Serial: 701

1шт.

38

1330184C1

BRACKET

ANGLE SSEMBLY - latch support, Start Serial: 701

1шт.

39

28595R1

SCREW

- oval head cross recess, 10 NF x 3/4 inch, Start Serial: 701

2шт.

41

28751R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recess tap, 10 NF x 3/4 inch, Start Serial: 701

8шт.

42

NLS

NO LONGER SERVICED

WASHER - lock, external, No. 10, Start Serial: 701

8шт.

43

28388R1

HOLE PLUG BUTTON,27/32"

PLUG - button, 27/32 inch hole (Lower handle hole), Start Serial: 701

1шт.

44

392801R3

LATCH

STRIKER - door catch, Start Serial: 701

1шт.

45

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- oval head cross recess, 1/4 NC x 1 inch, Start Serial: 701

2шт.

46

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - external lock, 1/4 inch, Start Serial: 701

2шт.

47

1970178C1

SET OF 2 KEYS

KEY - cab (Set of 2), Start Serial: 701

1шт.
