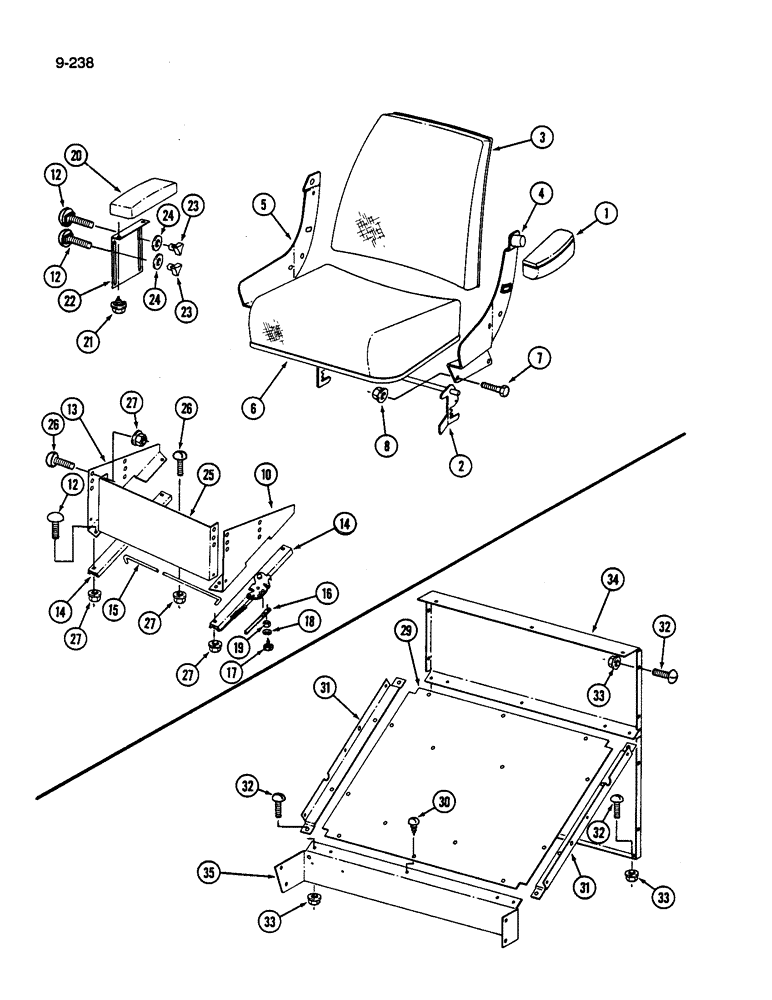

Запчасти Case IH 1844 (9-238) - OPERATOR SEAT AND SUPPORTS, SEATS PLATFORM (10) - CAB & AIR CONDITIONING

1321294C91

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 6

1шт.

1

180919C1

CUSHION

- arm rest, left

1шт.

2

1310828C1

SUPPORT

ASSEMBLY - seat tilt

1шт.

3

180918C1

CUSHION

ASSEMBLY - backrest

1шт.

4

1310835C1

BRACKET

- seat side, left

1шт.

5

1310830C1

BRACKET

- seat side, right

1шт.

6

180917C1

CUSHION

ASSEMBLY - seat

1шт.

7

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

8

487374

NUT - hex flange lock, 1/2 inch NC

4шт.

10

91668C1

PLATE

SUPPORT - seat bracket, left (Replaces 1301408C1)

1шт.

12

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

13

91669C1

PLATE

SUPPORT - seat bracket, right (Replaces 1301409C1)

1шт.

14

91659C1

RAIL

ADJUSTER ASSEMBLY - seat track (Replaces 192995C1)

2шт.

15

192996C1

ROD

- seat adjusting link

1шт.

16

98199C1

ROD

- seat adjusting link (Replaces 192997C1)

1шт.

17

159947

HYD CONNECTOR

- pan head cross recess, No. 10 x 3/4 inch

2шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

19

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

1301216C3

ARMREST

REST - arm

1шт.

21

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW - hex flange lock, 5/16 NC x 1/2 inch

2шт.

22

192999C1

SUPPORT

- arm rest mounting

1шт.

23

196970C1

KNOB

- arm rest

2шт.

24

25708R1

WASHER

- flat, 11/32 x 11/16 x 5/64 inch

2шт.

25

1301410C1

CHANNEL

CrANNEL - seat bracket filler

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

2шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

29

193000C1

PLATE

- platform center support, seat platform

1шт.

30

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Seat Platform Hex Wash Hd, 5/16"-18 x 13/16"

10шт.

31

193001C2

SUPPORT

ASSEMBLY - platform center side, seat

2шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- 5/16 NC x 3/4 inch, seat platform

21шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC, seat platform

21шт.

34

193003C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - platform center rear, seat

1шт.

35

193006C3

SUPPORT

ASSEMBLY - center front, seat

1шт.
