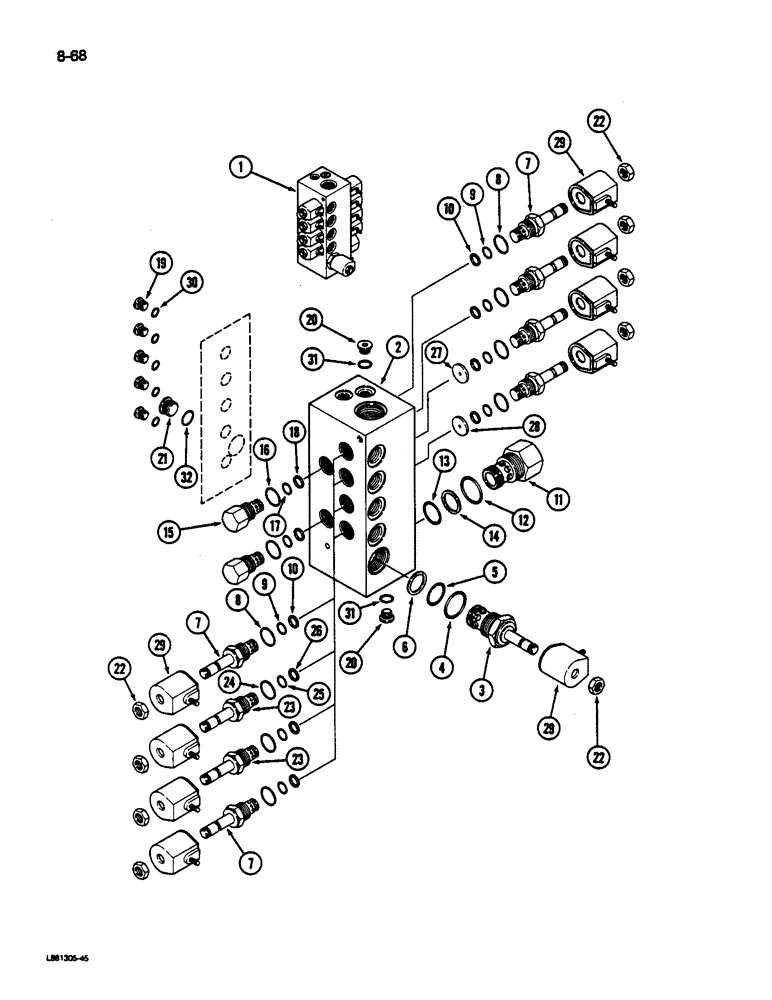

Запчасти Case IH 1844 (8-68) - BASKET MANIFOLD VALVE (07) - HYDRAULICS

1

1282231C92

VALVE

ASSEMBLY - basket manifold

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

1288953C1

VALVE

- two way solenoid

1шт.

1288954C1

SEAL KIT

KIT - seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

7

1288972C1

SOLENOID VALVE

VALVE - two way solenoid

6шт.

149942C1

SEAL KIT

KIT - seal

6шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

11

1288966C1

VALVE

- flow control

1шт.

1288954C1

SEAL KIT

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

15

87227C1

VALVE

- check

2шт.

149942C1

SEAL KIT

KIT - seal

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

19

1288962C1

PLUG

- hex, socket, 1/4 inch tube

5шт.

20

1288963C1

PLUG

- hex socket, 3/8 inch tube (Replaces 92725C1)

2шт.

21

224582C1

PLUG

- hex socket, 1/2 inch tube

1шт.

22

9403292

LOCK NUT,Blkhd, 1/2"-20

NUT - bulkhead union, 5/16 inch NC

9шт.

23

87252C1

SOLENOID VALVE

VALVE - two way solenoid

2шт.

149942C1

SEAL KIT

KIT - seal

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

27

1288973C1

LARGE PLATE

DISC - orifice, 1/8 inch

1шт.

28

1288974C1

LARGE PLATE

DISC - orifice

1шт.

29

1288956C2

SOLENOID

KIT - solenoid

9шт.

30

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

5шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

1шт.
