Запчасти Case IH 1844 (8-60) - COMPACTOR CYLINDER SYSTEM, 1844 COTTON PICKER (07) - HYDRAULICS

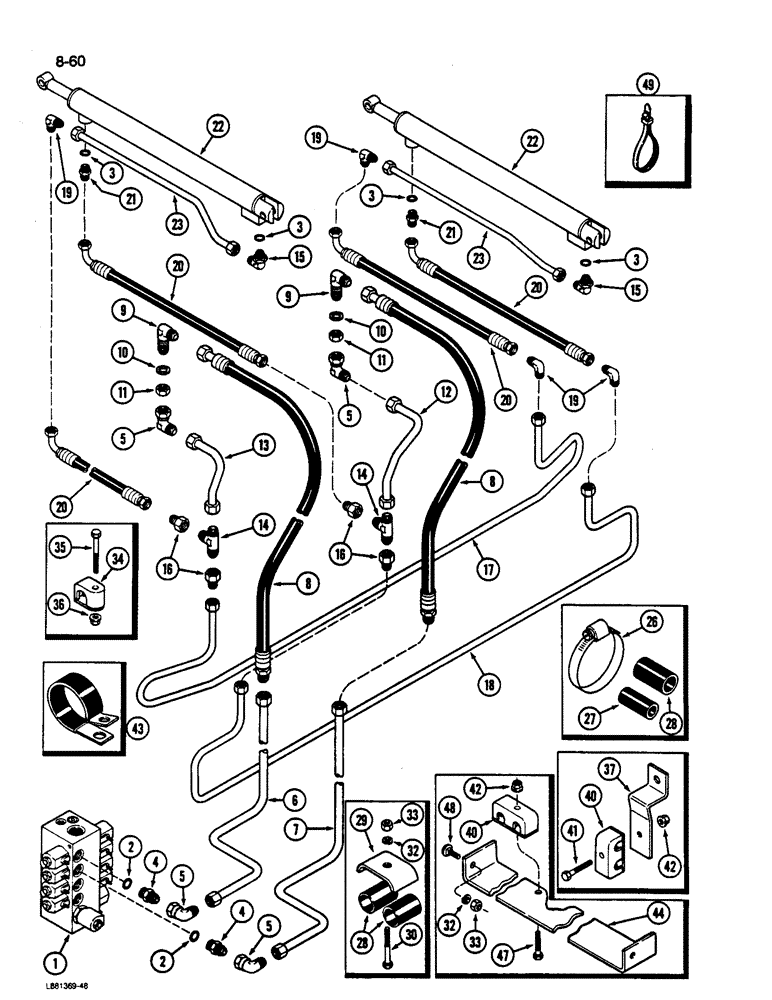

Схема запчастей Case IH 1844 - (8-60) - COMPACTOR CYLINDER SYSTEM, 1844 COTTON PICKER (07) - HYDRAULICS
32
20
3
19
13
20
33
29
44
3
42
4
15
11
37
21
16
35
17
12
34
43
21
36
4
3
33
22
28
32
1
8
26
18
16
28
30
8
42
41
49
14
27
10
23
10
9
6
2
19
3
14
40
47
5
11
19
5
9
23
15
2
7
22
40
20
5
48
5
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - basket manifold (See Page 8-69)

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

4шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short swivel, 5/8 inch OD tube

2шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 5/8 inch OD tube

4шт.

6

1285291C1

TUBE

ASSEMBLY - compactor lower, first

1шт.

7

1285290C1

TUBE

ASSEMBLY - compactor raise, first

1шт.

8

1288809C1

HOSE

- compactor supply, 49 inch (1 263 mm) (For machines without basket extension)

2шт.

8

1288780C1

HOSE ASSY.,15.88 mm ID x 1600.20, SAE 100R2

HOSE ASSY, 15.88 mm ID x 1600.20 mm, SAE 100R2, Compactor Supply; For Machines With Short Basket Extension

2шт.

8

1285371C1

HYDRAULIC HOSE,15.88 mm ID x 1879.60 mm

- Compactor supply (For machines with long basket extension) 15.88 mm ID x 1879.60 mm

2шт.

9

470783R1

ELBOW

- 90 degree bulkhead, 5/8 tube 7/8-14 inch thread

2шт.

10

615196R1

WASHER

- flat, 29/32 x 1-3/4 x 7/64 inch

4шт.

11

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT - bulkhead union lock, 5/8 inch OD tube

2шт.

12

1285311C3

TUBE

ASSEMBLY - compactor raise, second

1шт.

13

1285292C3

TUBE

ASSEMBLY - compactor lower, second

1шт.

14

9402983

TEE,7/8"-14, 37 Degree

- three way, 5/8 inch OD tube

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

16

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

4шт.

17

1285297C2

TUBE

ASSEMBLY - compactor lower, third

1шт.

18

1285296C1

TUBE

ASSEMBLY - compactor raise, third

1шт.

19

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - 90 degree elbow, 1/2 OD inch tube

4шт.

20

1285374C3

HOSE

- compactor cylinder

4шт.

21

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch OD tube

2шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - basket compactor, 1-1/2 x 20 inch (See Page 8-71)

1шт.

23

1285293C3

TUBE

ASSEMBLY - compactor cylinder

2шт.

26

279029R1

CLAMP

- hose

2шт.

27

163491C1

RUBBER INSULATOR

STRIP - tube clamp, 1/2 inch

2шт.

28

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp, 3/4 inch

4шт.

29

165601C1

CLAMP

- tube

1шт.

30

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

32

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

120377

NUT,3/8" - 16, Gr 5

2шт.

34

183822C1

CLAMP

- tube

2шт.

35

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

36

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

2шт.

37

1288818C1

SUPPORT

BRACKET - tube support

2шт.

40

1301178C1

CLAMP

- tube

4шт.

41

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

42

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

5шт.

43

28009R1

CLAMP

- closed

2шт.

44

87468C1

BRACKET

- compactor tube support

2шт.

47

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

48

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

49

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

4шт.
