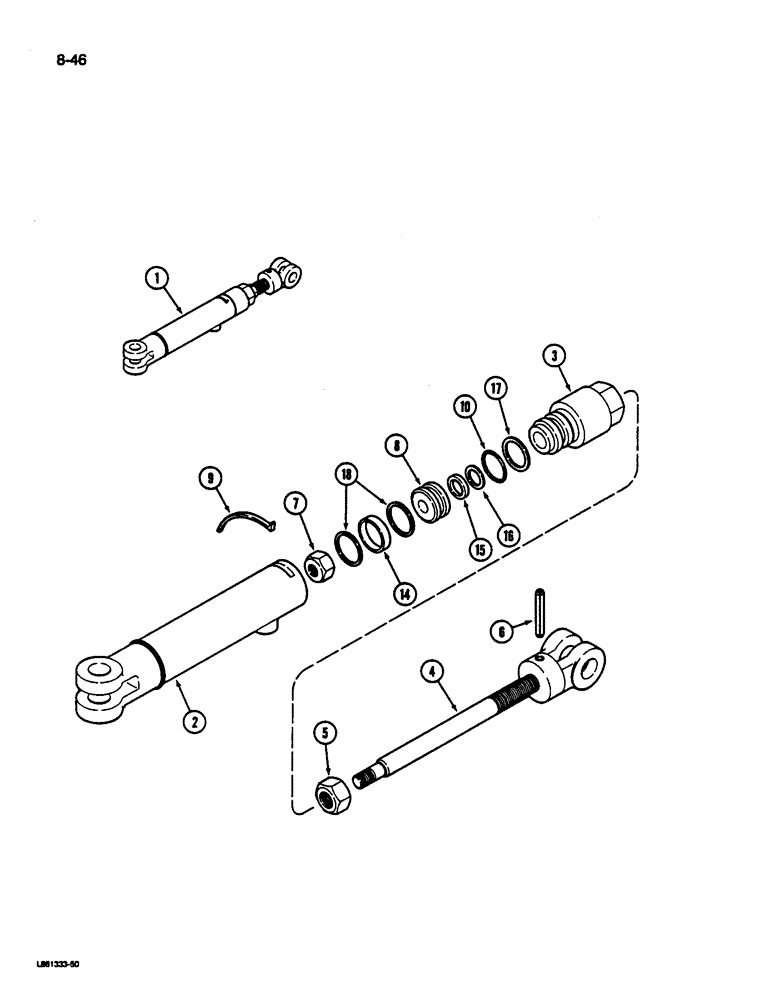

Запчасти Case IH 1844 (8-46) - FAN CLUTCH CYLINDER (07) - HYDRAULICS

1

145389C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - fan clutch

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

149629C2

JACK HEAD

HEAD - front

1шт.

4

381826R11

PISTON ROD

ROD ASSEMBLY - piston

1шт.

5

9413941

NUT,1/2"-13, GA

- hex lock, 1/2 inch NC, Grade 1

1шт.

6

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

7

9411638

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC, Grade 1

1шт.

8

381828R4

JACK PISTON

PISTON - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - front head

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 1 inch

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston quad

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

15

NSS

NOT SOLD SEPARAT

RING - piston rod quad

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston rod backup

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

17

NSS

NOT SOLD SEPARAT

RING - head backup

1шт.

Part of cylinder seal kit P/N 386690R93

1шт.

18

NSS

NOT SOLD SEPARAT

RING - piston backup

2шт.

Part of cylinder seal kit P/N 386690R93

1шт.

386690R93

SEAL KIT

KIT - cylinder seal, Includes: Ref. 9, 10, 14,15, 16, 17 and 18

1шт.
