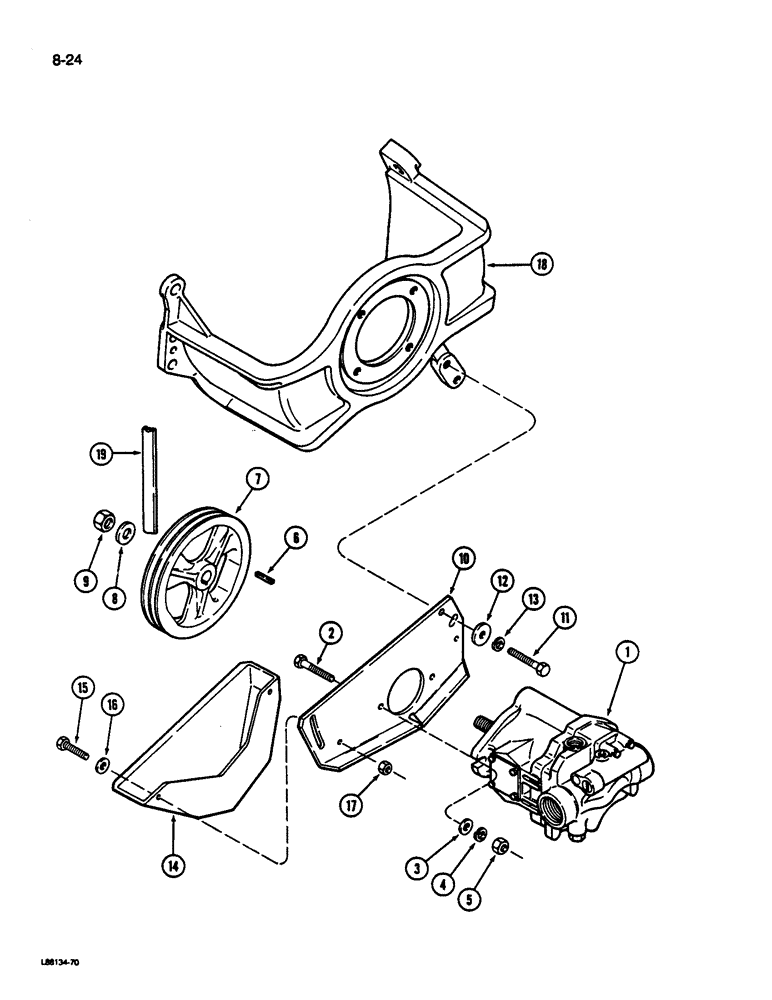

Запчасти Case IH 1844 (8-24) - HYDRAULIC PUMP MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Page 8-19)

1шт.

2

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

2шт.

3

26273R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

2шт.

4

120384

WASHER,1/2"

LOCK, , NC 1/2"

2шт.

5

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

452779R1

KEY,1/4" Sq x 3/4", Par

- square parallel, 1/4 x 3/4 inch

1шт.

7

1285257C4

PULLEY

- drive, pump

1шт.

8

25538R1

WASHER

- flat, 13/16 x 1-1/2 x 9/64 inch

1шт.

9

9413972

LOCK NUT,3/4"-16, GB

NUT - hex, 3/4 inch NF

1шт.

10

1260381C5

SUPPORT

- pump mounting

1шт.

11

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

3шт.

12

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

3шт.

13

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

14

87367C2

GUARD

SHIELD ASSEMBLY - pump pulley (Replaces 1278286C5)

1шт.

15

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

16

120388

- flat, 7/16 x 1 x 1/16 inch

2шт.

17

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

18

REF

INSTRUCTION

HOUSING - pulley (See Page 6-7)

1шт.

19

1285320C1

V-BELT,16.00 mm W x 1484.82 mm L, 2 Ribs

Drive, Auxiliary Pump 16.00 mm W x 1484.82 mm L, 2 Ribs

1шт.
