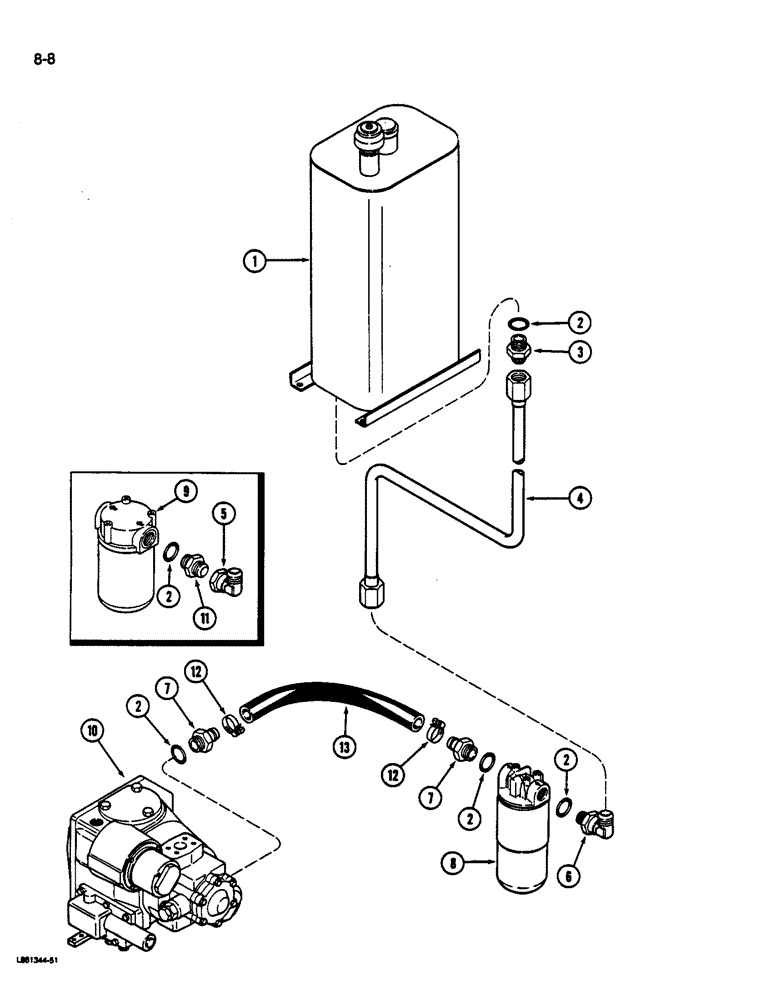

Запчасти Case IH 1844 (8-08) - HYDRAULIC RESERVOIR TO HYDROSTATIC PUMP SYSTEM, 1844 COTTON PICKER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Page 8-5)

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1 inch OD tube

4шт.

3

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short swivel. 1 inch OD tube

1шт.

4

1285338C1

TUBE,1" OD, 935.5,485.7 mm Length

ASSEMBLY - filter supply

1шт.

5

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1 inch OD tube (Prior to P.I.N. 701)

1шт.

6

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree adjustable, 1 inch OD tube (P.I.N. 701 and after)

1шт.

7

180182C1

FITTING

CONNECTOR - beaded tube, 1-5/16-12 x 1 inch

2шт.

8

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic suction (P.I.N. 701 and after)(See Page 8-13)

1шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic suction (Prior to P.I.N. 701)(See Page 8-11)

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Page 6-21 and 6-27)

1шт.

11

1288561C1

FITTING

- filter inlet (Prior to P.I.N. 701)

1шт.

12

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, No. 20, Type F

2шт.

13

1285373C1

HOSE,25.40 mm ID x 464.00, SAE 100R4

25.40 mm ID x 464.00 mm, SAE 100R4, Suction

1шт.
