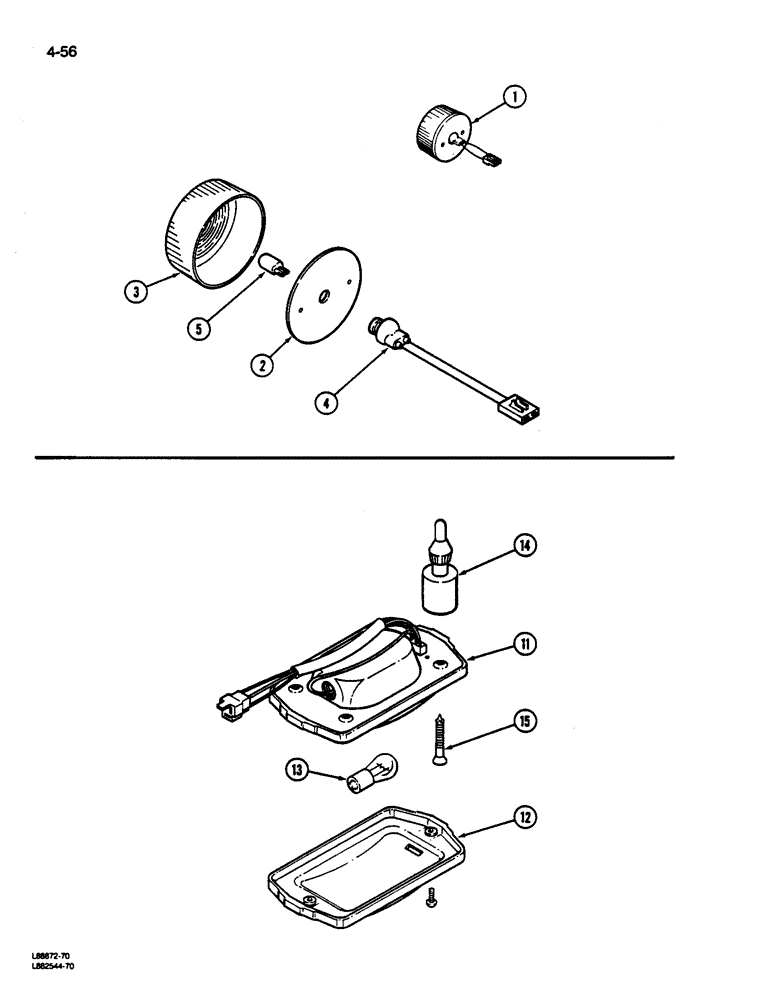

Запчасти Case IH 1844 (4-56) - TAIL LIGHT AND DOME LIGHT (06) - ELECTRICAL SYSTEMS

1

131183C91

STOP LIGHT

LIGHT ASSEMBLY - tail, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

BASE - lamp

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

4

107329C1

WIRE HARNESS

SOCKET AND CABLE ASSEMBLY - bulb

1шт.

5

26617R1

BULB,C2F, #168, 14V

- lamp (No. 168)

1шт.

11

245659C91

LAMP

LIGHT ASSEMBLY - dome. Includes: Ref. 12 & 13

1шт.

12

245679C1

LENS

- dome light

1шт.

13

142457

BULB,C6, #1142, 12.8V

- No. 1142

1шт.

14

117995C1

PACKAGE

KIT - dome light fastener (Contains 5 fasteners)

1шт.

15

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch

4шт.
