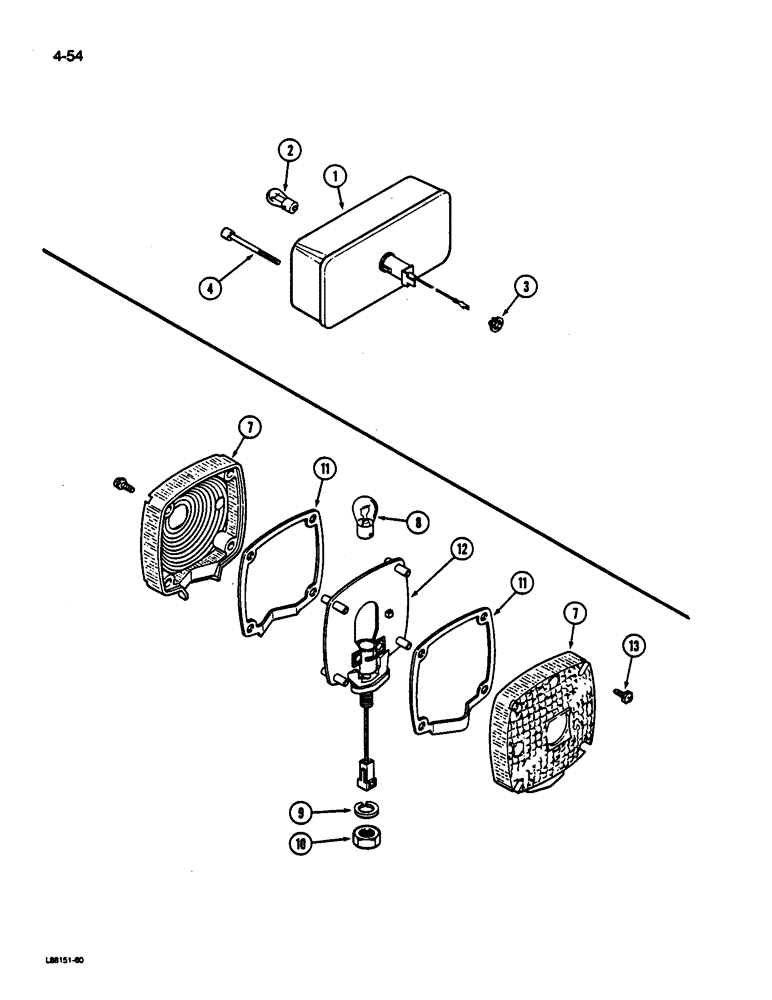

Запчасти Case IH 1844 (4-54) - WARNING LIGHT, REAR AND SIDE (06) - ELECTRICAL SYSTEMS

130882C91

LAMP

WARNING LIGHT ASSEMBLY - rear, Includes: Ref. 1 - 4

2шт.

1

130883C1

LENS

- amber

1шт.

2

9417866

BULB,C6, #1156, 12.8V

- lamp (No. 1156)

1шт.

3

806122C1

NUT

- plastic insert

2шт.

4

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - No. 10 x 2-1/2 inch

2шт.

83885C91

LAMP

WARNING LIGHT ASSEMBLY - side, Includes: Ref. 7 - 13

2шт.

7

537012R1

LENS

- amber

2шт.

8

9417866

BULB,C6, #1156, 12.8V

- lamp (No. 1156)

1шт.

9

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lens

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - slotted, No. 8 x 3/4 inch

8шт.
