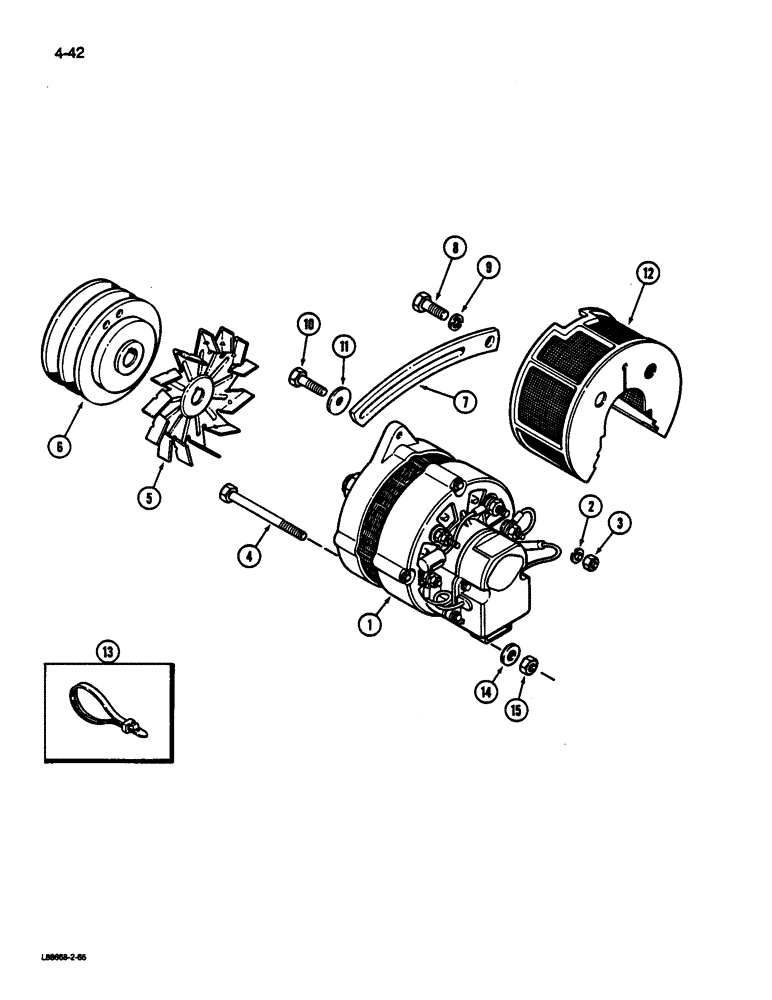

Запчасти Case IH 1844 (4-42) - ALTERNATOR MOUNTING, 90 AMPERE ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - engine, 90 ampere (See Page 4-47)

1шт.

2

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

120375.

NUT - hex, 1/4 inch NC

1шт.

4

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

- hex, M10 x 90 mm

1шт.

5

221425R1

FAN

- alternator

1шт.

6

1252602C1

X

PULLEY - alternator (Alternate with 131042C1)

1шт.

6

131042C1

PULLEY

- alternator (Alternate with 1252602C1)

1шт.

7

532418R1

BRACE

- alternator

1шт.

8

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M8 x 30 mm

1шт.

11

25552R1

WASHER,.344" x 1" x .098", HDN

- flat, 11/32 x 1 x 3/32 inch

1шт.

12

245165C1

SHIELD

- alternator cover

1шт.

13

291207C1

CLAMP

STRAP - shield (Replaces 245163C1)

1шт.

14

25709R1

WASHER

- flat, hardened

1шт.

15

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, M10 Class 10

1шт.
