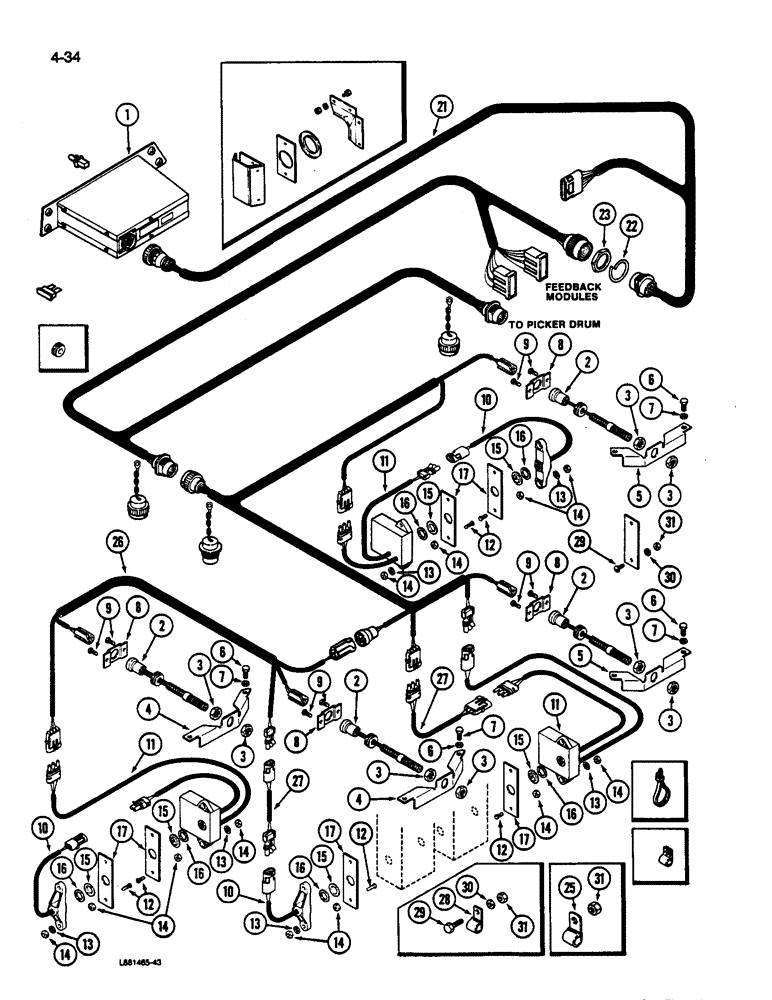

Запчасти Case IH 1844 (4-34) - SYSTEM MONITOR, 1844 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

91779C91

REMAN-ELECT GAUGE

GAUGE - monitor system, remanufactured (North America Only)

1шт.

1

245620C2

GAUGE

- monitor system, new

1шт.

2

91773C1

TRANSMITTER

TRANSDUCER - rotor speed

8шт.

3

129-168

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF (replaces 219758R1)

16шт.

4

87180C1

BRACKET

ASSEMBLY - transducer left

4шт.

5

87181C1

BRACKET

ASSEMBLY - transducer right

4шт.

6

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

7

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

8

91795C1

SUPPORT

BRACKET - transducer connection mounting

8шт.

9

593762R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - No. 10 x 3/4 inch

6шт.

10

245872C2

CONTROL

EMITTER - control

6шт.

11

245873C2

CONTROL

DETECTOR - control

6шт.

12

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

BOLT - hex, cover monitor plate (Replaces 187797C1)

24шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

48шт.

15

83901C1

PACKAGE

CAP ASSEMBLY - lens

4шт.

16

1338700C1

GASKET

- lens cap

4шт.

17

87048C3

LARGE PLATE

PLATE - cover

12шт.

21

245830C1

HARNESS

- monitor (Cab)

1шт.

22

490691C1

LOCK WASHER,#18 Shell

- connector mounting

3шт.

23

490692C1

LOCK NUT,#18 Shell

- connector mounting

3шт.

25

670043C1

CLIP

- drum harness

36шт.

26

91768C1

HARNESS

- monitor drum outer

2шт.

27

245006C1

HARNESS

- front choke inter-connection

4шт.

28

371036R1

CLIP

- cable retaining, 11/32 inch diameter hole

16шт.

28

262123R1

CLIP - cable retaining, 15/32 inch diameter hole

38шт.

REF# 28 REPLACED BY 362123R1 7/22/96

1шт.

29

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- truss head, 1/4 NC x 1/2 inch

8шт.

29

937875R1

SCREW,Serr, 1/4" - 20

- slotted, 1/4 NC x 3/4 inch

24шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

32шт.

31

120375

NUT,Hex, 1/4" - 20, Gr 5

72шт.
