(4-30) - PROPULSION CONTROL HANDLE

Запчасти Case IH 1844 (4-30) - PROPULSION CONTROL HANDLE (06) - ELECTRICAL SYSTEMS

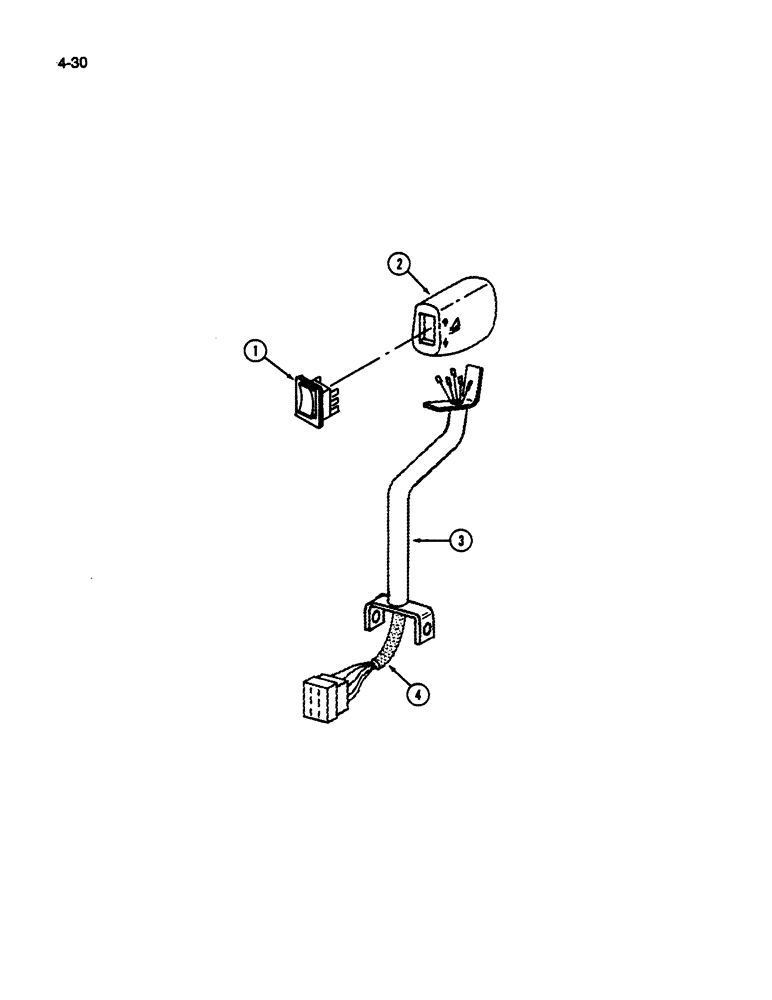

Схема запчастей Case IH 1844 - (4-30) - PROPULSION CONTROL HANDLE (06) - ELECTRICAL SYSTEMS
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

91928C1

SWITCH

- master drum (Replaces 245508C1)

1шт.

2

REF

INSTRUCTION

HANDLE - multi-control (See Page 6-17 and 6-19)

1шт.

3

REF

INSTRUCTION

LEVER ASSEMBLY - propulsion with harness (See Page 6-17 and 6-19)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS (Order lever assembly)

1шт.
