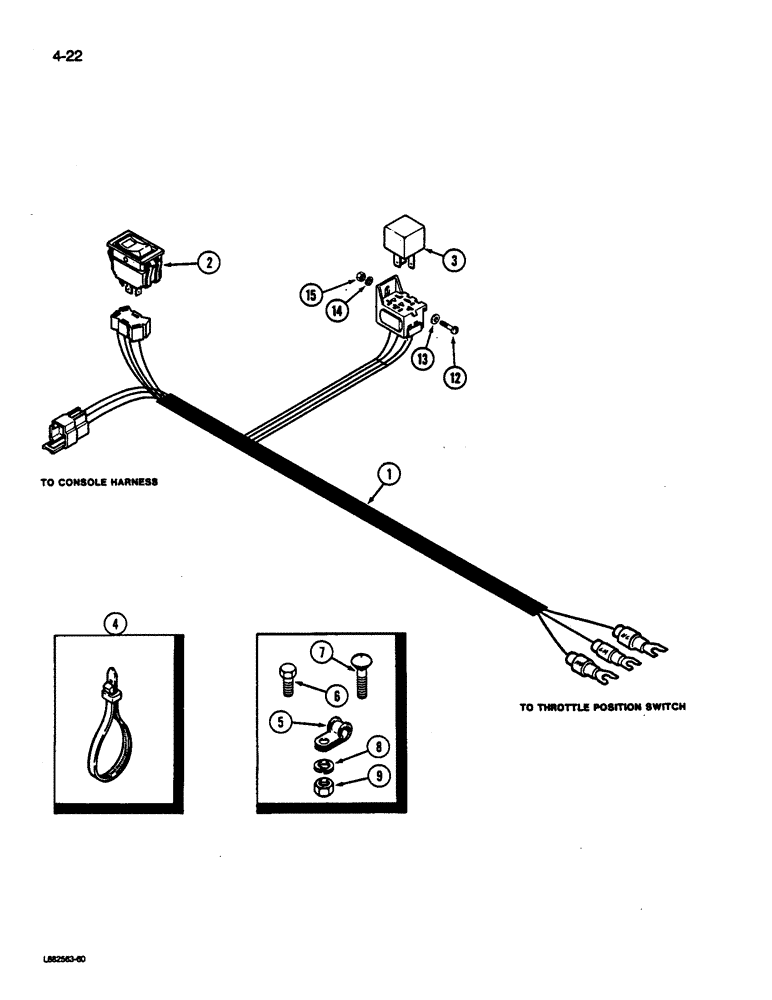

Запчасти Case IH 1844 (4-22) - FAN INTERLOCK HARNESS (06) - ELECTRICAL SYSTEMS

1

92149C1

HARNESS

- interlock

1шт.

2

92148C1

SWITCH

- fan (Replaces 245681C1)

1шт.

3

146461C1

RELAY

1шт.

4

702093C1

CABLE TIE

STRAP - tie

4шт.

5

299268C91

CLAMP

CLIP - harness

2шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

7

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - round head square neck, 1/4 NC x 1-1/4 inch

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

12

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

1шт.

13

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (Replaces 120217) #10

1шт.

15

120361

NUT,Hex Mach Screw, #10 - 24

1шт.
