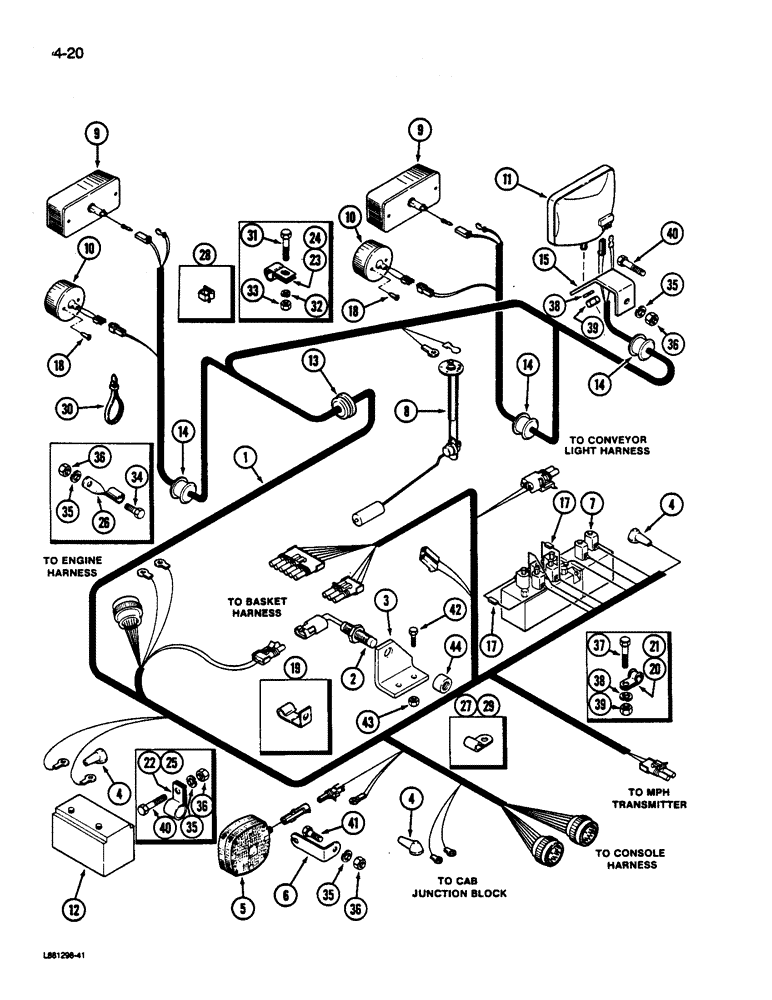

Запчасти Case IH 1844 (4-20) - REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

91803C3

HARNESS

- rear

1шт.

2

245193C2

SENSOR

TRANSMITTER - transducer (MPH and fan RPM)

2шт.

3

1285232C1

SUPPORT

BRACKET - transmitter

1шт.

4

399470R1

BOOT

- terminal

3шт.

5

REF

INSTRUCTION

LIGHT - warning (See Page 4-55)

2шт.

6

1283289C1

ANGLE

BRACKET - light

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - manifold (See Page 8-33)

1шт.

8

REF

INSTRUCTION

SENDER - fuel level (See Page 3-21)

1шт.

9

REF

INSTRUCTION

LIGHT - warning (See Page 4-55)

2шт.

10

REF

INSTRUCTION

LIGHT - tail (See Page 4-57)

2шт.

11

245897C91

LAMP, WORK

LIGHT - flood

1шт.

12

REF

INSTRUCTION

BATTERY - (See Page 4-39 and 4-41)

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- harness

1шт.

14

1321767C1

GROMMET

- harness

3шт.

15

561915R1

BRACKET

- light

1шт.

17

548239R2

RECTIFIER

DIODE - harness

2шт.

18

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, No. 10 x 3/4 inch

4шт.

19

370383R1

CLIP

- harness (Warning light cables)

4шт.

20

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

CLIP - harness (See Note A)

2шт.

21

299403C1

CLAMP

CLIP - harness (Frame cross member) (replaces 446074R91)

1шт.

22

406381C1

CLIP

- harness (Frame right side)

1шт.

23

299566C1

CLAMP

CLIP - harness (See Note B)

2шт.

24

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness (See Note C)

1шт.

25

98959R1

CLAMP

CLIP - harness (Behind fuel tank)

2шт.

26

363660R1

CLIP

- harness (Air cleaner bracket)

1шт.

27

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness (See Note D)

3шт.

28

862576R1

CLAMP

CLIP - harness (Tail light cables)

4шт.

29

366460R1

CABLE CLIP

CLIP - harness (Fan speed transducer cables)

2шт.

30

702093C1

CABLE TIE

STRAP - tie (Frame, right side)

1шт.

31

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

32

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

120376

NUT,5/16"-18, G5

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

35

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

36

120377

NUT,3/8" - 16, Gr 5

4шт.

37

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

38

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

39

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

40

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

41

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

42

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

43

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

2шт.

44

NSS

NOT SOLD SEPARAT

NUT - retaining, special (replaces 184174C1)

2шт.

REF# 44 IS A NSS PART SERVICE WITH COVER

1шт.

ASSY# 184172C1. 7/22/96

1шт.
