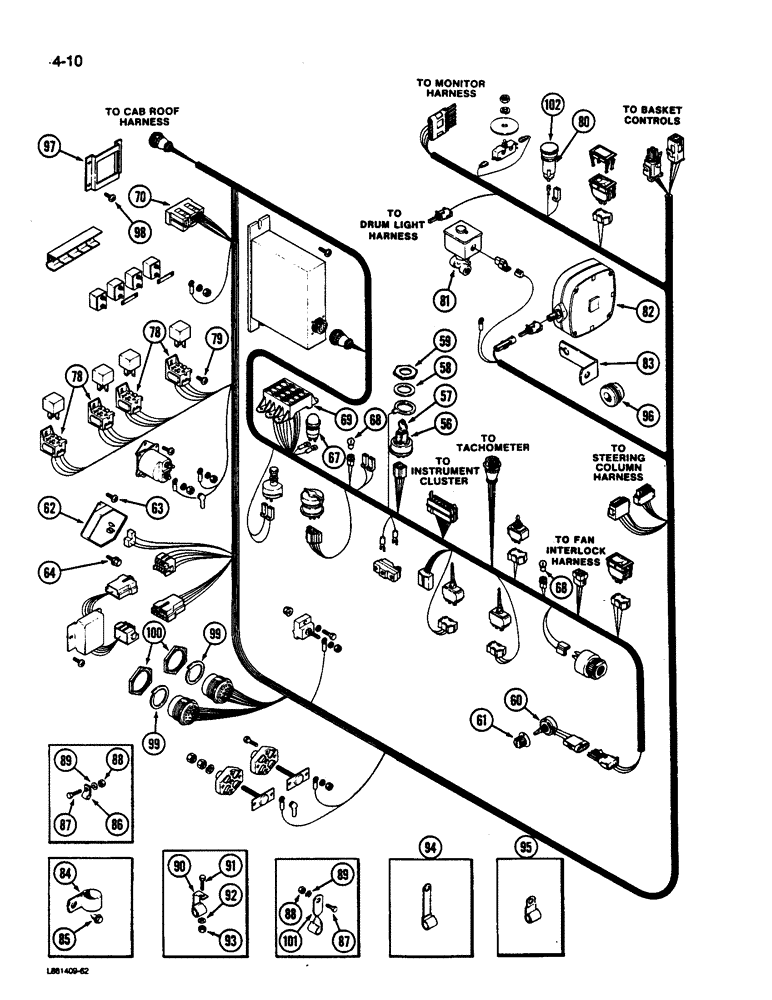

Запчасти Case IH 1844 (4-10) - CONSOLE HARNESS (06) - ELECTRICAL SYSTEMS

56

1252476C1

SWITCH

- ignition

1шт.

57

131313C1

KEY, IGNITION

KEY - switch

1шт.

58

375431R1

LOCK WASHER

- flat, 19/32 x 1 inch x 11 gauge

1шт.

59

365502R1

NUT

- switch mounting

1шт.

60

245385C1

POTENTIOMETER,1000 Ohm

Rate Control 1000 Ohm

1шт.

61

1301036C1

BUTTON

KNOB

1шт.

62

245835C1

SUPPRESSOR

- central load dump

1шт.

63

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tap, No. 10 x 1/2 inch

2шт.

64

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex flange, No.10-24 x 1/2 inch

2шт.

67

453453C1

SWITCH

- ether

1шт.

68

200557H1

BULB,C2V, #1815, 14V

LAMP - No. 1815

6шт.

69

NSS

NOT SOLD SEPARAT

BLOCK - fuse (Order harness 91812C2)

1шт.

70

NSS

NOT SOLD SEPARAT

MODULE - feedback (Order harness 91812C2)

1шт.

78

NSS

NOT SOLD SEPARAT

SOCKET - relay (Order harness 91812C2)

4шт.

79

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

80

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette (Includes Ref. 82)

1шт.

81

REF

INSTRUCTION

VALVE ASSEMBLY - water

1шт.

82

REF

INSTRUCTION

LIGHT - warning (See Page 4-55)

1шт.

83

1283289C1

ANGLE

BRACKET - warning light mounting

1шт.

84

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

CLIP - console harness (on rear wall)

2шт.

85

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

2шт.

86

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

- harness (On front wall)

1шт.

87

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

88

120376

NUT,5/16"-18, G5

2шт.

89

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

90

370383R1

CLIP

- harness (Under platform)

4шт.

91

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

92

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

93

120377

NUT,3/8" - 16, Gr 5

1шт.

94

362126R1

CLIP

- harness (Under platform front edge)

2шт.

95

358986R1

CABLE CLIP

CLIP - left console harness

3шт.

96

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- left console harness

2шт.

97

NSS

NOT SOLD SEPARAT

BRACKET - feedback module (Order harness 91812C2)

1шт.

98

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

99

459330C1

LOCK WASHER

WASHER - lock, 1-11/16 inch

2шт.

100

459329C1

NUT

- hex, 1-11/16 inch UNEF

2шт.

101

363660R1

CLIP

- harness (Between instrument panel and console extension)

1шт.

102

378781R1

LIGHTER, CIGARETTE

ELEMENT - lighter

1шт.
