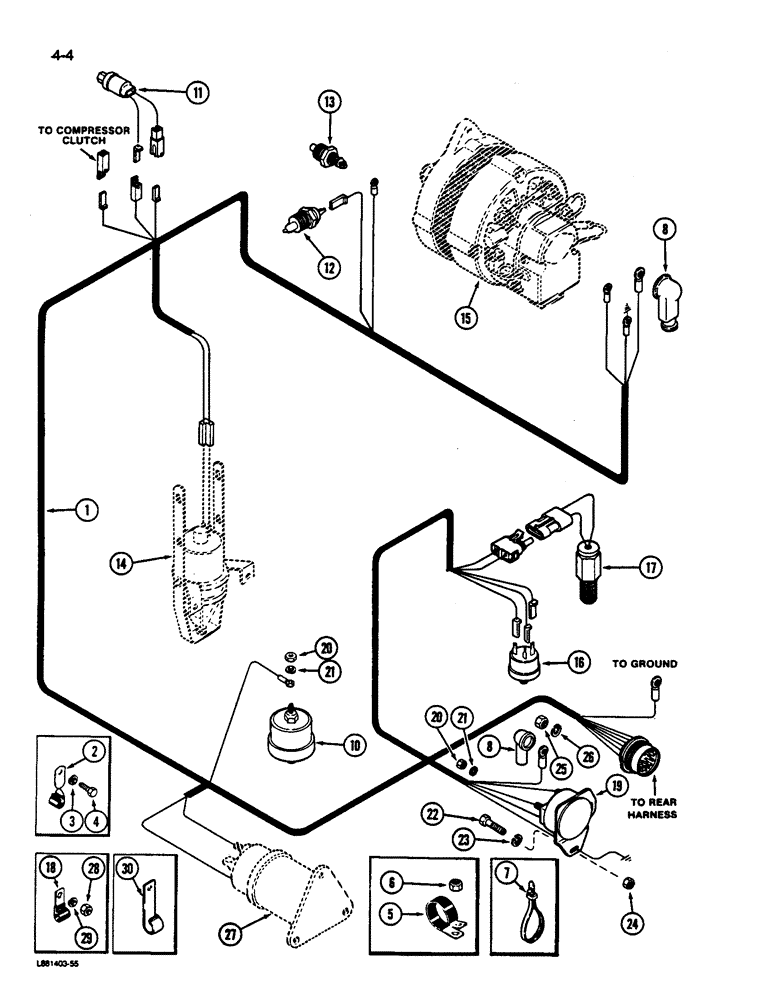

Запчасти Case IH 1844 (4-04) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

1

1338703C2

HARNESS

- engine (Replaces 245934C1)

1шт.

2

670368C1

CLIP

- harness

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

5

299566C1

CLAMP

CLIP - harness

1шт.

6

120377

NUT,3/8" - 16, Gr 5

1шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie

1шт.

8

399470R1

BOOT

- cable

1шт.

10

130707C3

SENDER UNIT

SENDER - oil pressure

1шт.

11

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

130861C1

SWITCH

- coolant temperature

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - either injection (See Page 2-17)

1шт.

15

REF

INSTRUCTION

ALTERNATOR - (See Page 4-47 and 4-49)

1шт.

16

121817C1

SWITCH

- oil pressure

1шт.

17

1252495C1

TRANSMITTER

- engine RPM

1шт.

REF# 17 1252495C1 IS NAVISTAR ONLY.

1шт.

FOR THE NCE USE 1252494C2. 7/22/96

1шт.

18

362123R1

CLIP

- harness (See Note A)

3шт.

19

121613C1

IGNITION SWITCH

RELAY - starter solenoid

1шт.

20

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

21

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

25

120376

NUT,5/16"-18, G5

2шт.

26

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

REF

INSTRUCTION

SOLENOID - starter (See Page 4-51)

1шт.

28

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

NUT - hex, 5/16 inch NC (See Note B)

1шт.

28

120377

NUT,3/8" - 16, Gr 5

(See Note C) 3/8"-16, G5

1шт.

29

80681

LOCK WASHER,5/16"

WASHER, LOCK, (See Note B) 5/16"

1шт.

29

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (See Note C) 3/8"

2шт.

30

269980R1

CLIP

- harness, engine rear

1шт.
