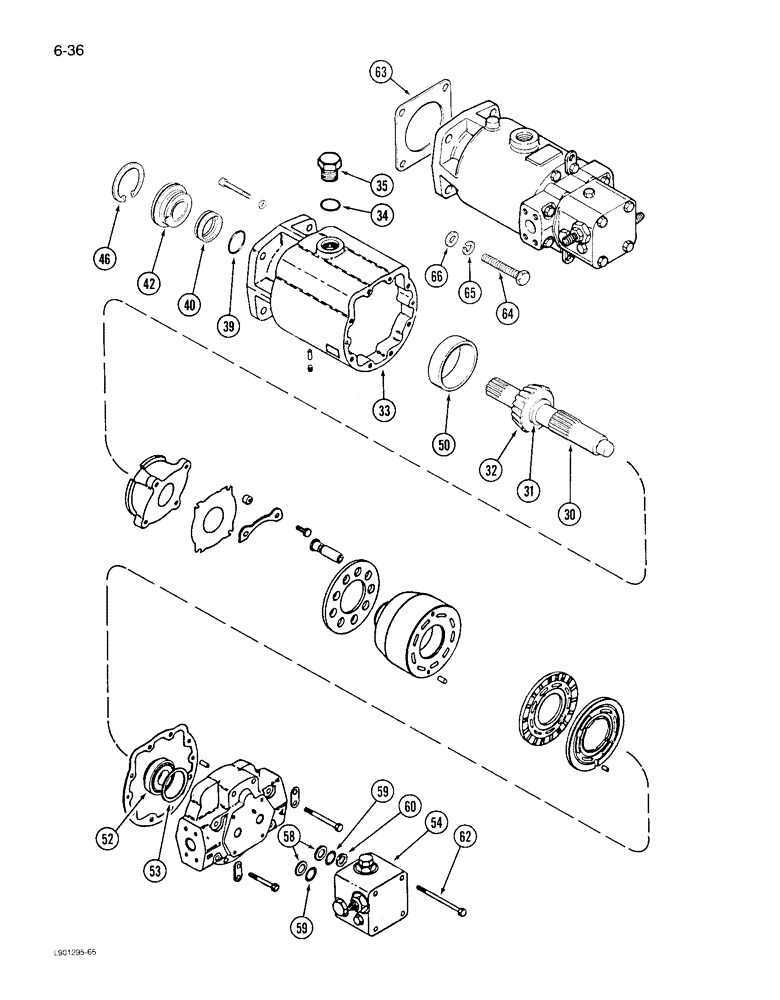

Запчасти Case IH 1844 (6-36) - HYDROSTATIC MOTOR (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (1822 Cotton Picker)(Continued)

1шт.

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (1844 Cotton Picker)(Continued)

1шт.

30

1346188C1

SHAFT

ASSEMBLY - control valve (Replaces 92733C1)

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining (Order 1346188C1)

1шт.

32

NSS

NOT SOLD SEPARAT

CONE - bearing, drive shaft, 1-7/8 inch ID

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - motor (See Note)

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

9410361

PLUG

- housing, 1-1/16-12 inch thread

1шт.

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft (Replaces 142518C92)

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING - shaft

2шт.

40

NSS

NOT SOLD SEPARAT

SEAL - shaft, rotating

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - shaft, stationary

1шт.

46

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

50

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - bearing, drive shaft, 3-1/2 inch OD

1шт.

52

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

CONE - bearing, drive shaft, 7/8 inch ID

1шт.

53

140759C1

BEARING CUP

CUP - bearing, drive shaft, 2-1/4 inch OD

1шт.

54

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve (See Page 6-39)

1шт.

140747C91

SEAL KIT

SEAL KIT - relief block

1шт.

58

631458C1

RING

- back-up

2шт.

59

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

60

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

O-RING - square section, 3/4 x 7/8 x 1/16 inch

1шт.

62

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

63

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

64

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch

4шт.

65

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

66

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.
