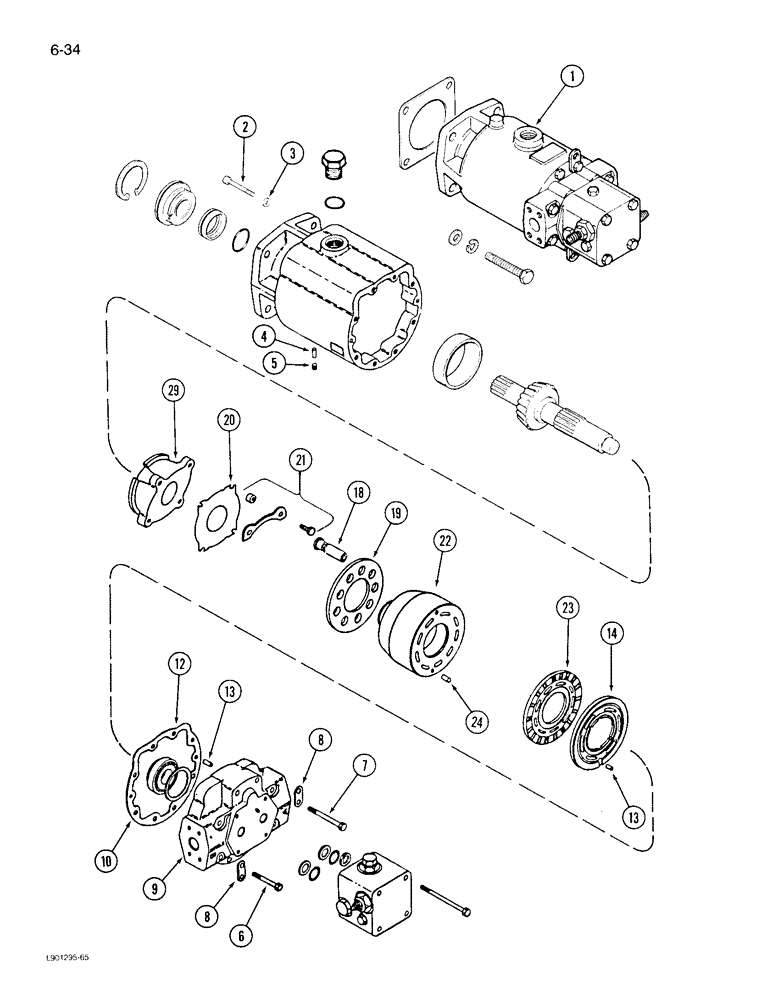

Запчасти Case IH 1844 (6-34) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1286306C92

REMAN-HYDROSTAT MOTO

MOTOR ASSEMBLY - hydrostatic, remanufactured (North America Only) (1822 Cotton Picker)

1шт.

1

1286305C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new (1822 Cotton Picker)

1шт.

1978049C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

1

1285875C92

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured (North America Only) (1844 Cotton Picker)

1шт.

1

1285874C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new (1844 Cotton Picker)

1шт.

2

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

3

92734C1

SEALING WASHER

WASHER - sealing

2шт.

4

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened

1шт.

5

444688

PLUG

PLUG - pipe, 1/8 inch PT

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch

2шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 3/4", G5

6шт.

8

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

9

NSS

NOT SOLD SEPARAT

COVER - end (See Note)

1шт.

10

140760C91

SHIM KIT

SHIM KIT - bearing

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

92735C2

GASKET

GASKET - end cover

1шт.

13

140754C1

PIN

PIN - dowel, 5/16 x 5/8 inch

3шт.

14

92732C1

PLATE

PLATE - valve

1шт.

1978053C1

KIT

KIT - rotating, cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder

9шт.

19

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

21

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

22

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

24

140754C1

PIN

PIN - dowel, 5/16 x 5/8 inch

2шт.
