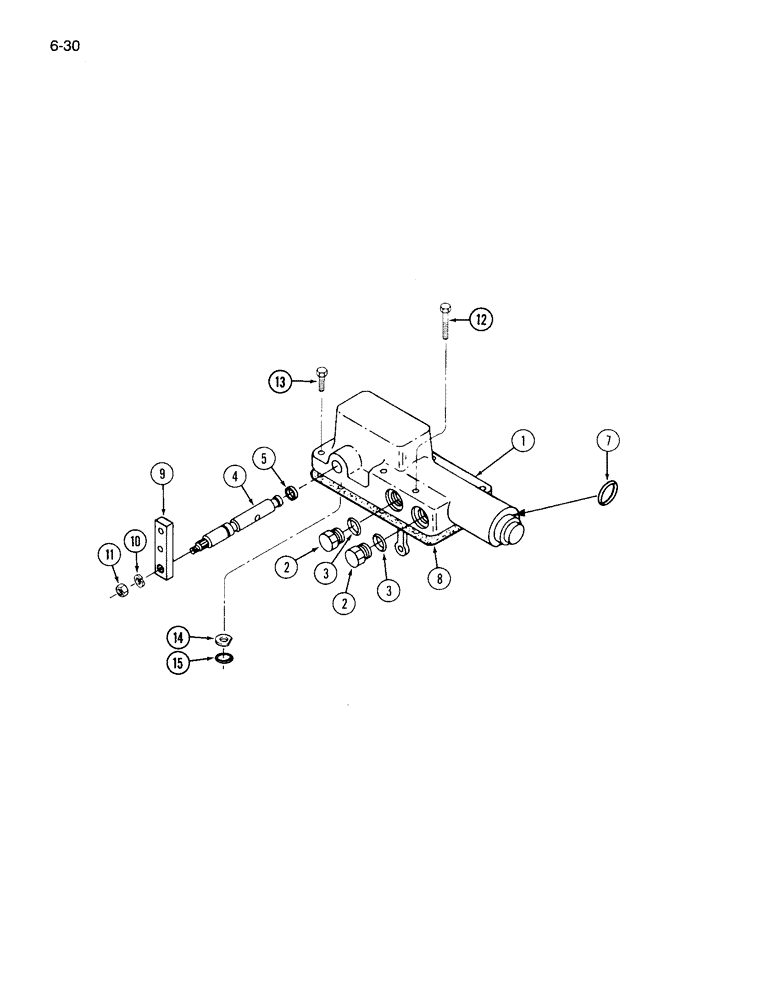

Запчасти Case IH 1844 (6-30) - HYDROSTATIC PUMP CONTROL VALVE (03) - POWER TRAIN

133755C94

VALVE

ASSEMBLY - pump control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 133755C94)

1шт.

2

1288963C1

PLUG

- hex socket, 3/8 inch tube

2шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

4

1978048C1

SHAFT

- control valve

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- shaft, 5/16 x 7/16 x 1/16 inch

1шт.

7

80269C1

O-RING KIT

O-RING - 5/8 x 3/4 x 1/16 inch

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 5/16 inch

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

13

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1346021C1

ORIFICE

VENT - control valve (1822)

1шт.

14

1272750C1

ORIFICE

VENT - control valve (1844)

1шт.

15

355967R1

O-RING,0.364" ID x 0.003" Width

- vent, 5/16 x 7/16 x 1/16 inch

1шт.
