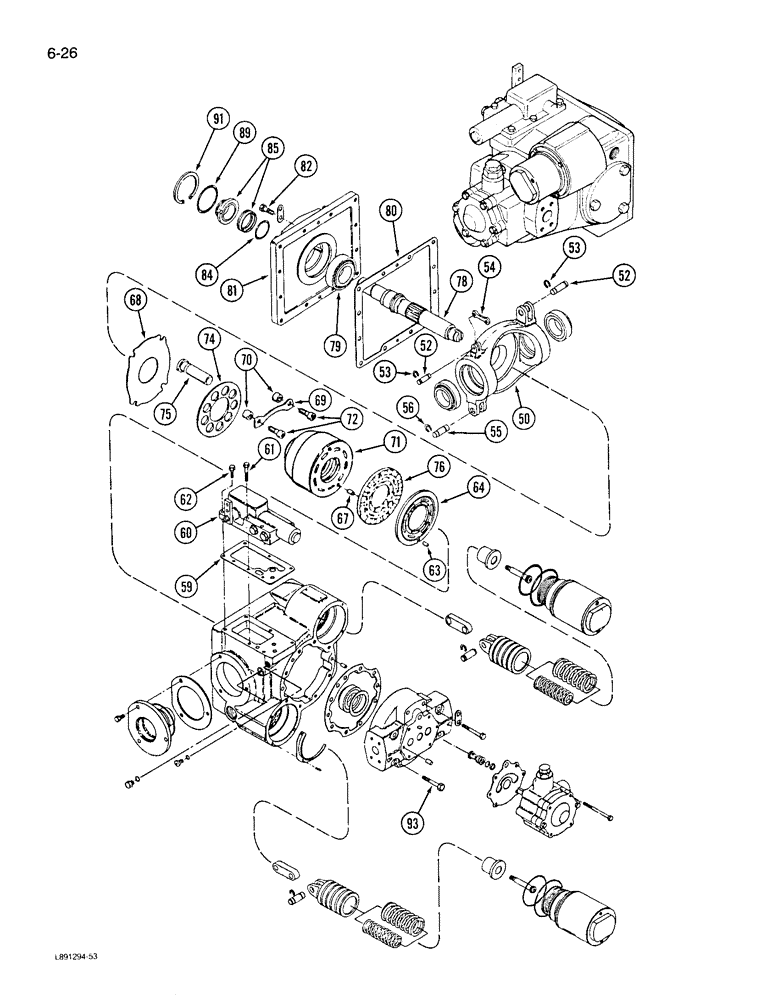

Запчасти Case IH 1844 (6-26) - HYDROSTATIC PUMP, 1844 COTTON PICKER (03) - POWER TRAIN

PUMP ASSEMBLY - hydrostatic (Continued)

1шт.

50

1980171C1

HOUSING

PLATE ASSEMBLY - swash variable

1шт.

52

140765C1

PIN

- link

1шт.

53

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

54

142402C1

LINK

- valve

1шт.

55

140766C1

PIN,14.22mm OD x 39.12mm L

- linkage

2шт.

56

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

59

133756C1

GASKET

- valve

1шт.

60

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Page 6-31)

1шт.

61

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

62

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

63

140754C1

PIN

- dowel, 5/16 x 5/8 inch

1шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

ROTATING KIT - group, cylinder

1шт.

67

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

68

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

69

NSS

NOT SOLD SEPARAT

PLATE - hold down

2шт.

70

NSS

NOT SOLD SEPARAT

SPACER - hold down

4шт.

71

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

72

NSS

NOT SOLD SEPARAT

STUD - hold down

4шт.

74

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

75

NSS

NOT SOLD SEPARAT

PISTON - cylinder

9шт.

76

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

78

1980170C1

SHAFT

ASSEMBLY - drive (with snap ring)

1шт.

79

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - bearing, shaft

1шт.

80

142399C1

GASKET

- mounting

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order 1976874C1)

1шт.

82

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

142518C92

PACKAGE

SEAL KIT - shaft

1шт.

84

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

1шт.

85

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

89

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- 2-9/16 x 2-3/4 x 3/32 inch

1шт.

91

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

93

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, Grade 8

2шт.
