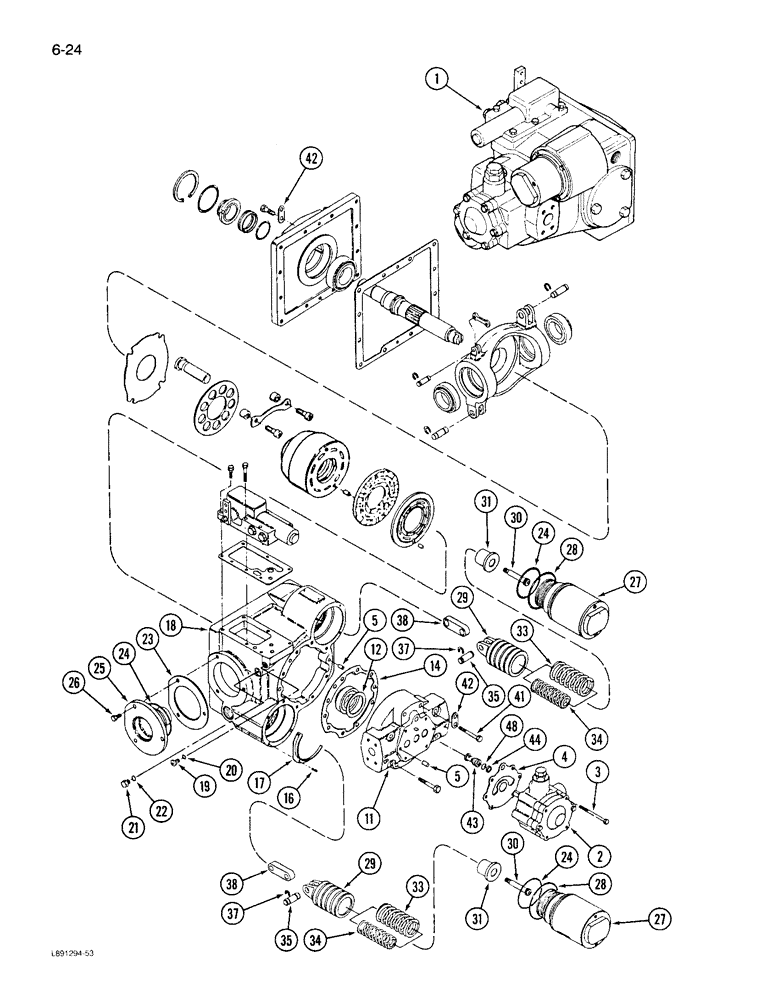

Запчасти Case IH 1844 (6-24) - HYDROSTATIC PUMP, 1844 COTTON PICKER (03) - POWER TRAIN

1976875C1

REMAN-HYD PUMP

PUMP ASSEMBLY - hydrostatic, remanufactured (North America Only)

1шт.

1

1976876C1

PUMP

CORE ASSEMBLY - pump (Use this number when returning pump core for credit)

1шт.

1

1976874C1

PUMP

ASSEMBLY - hydrostatic, new

1шт.

2

REF

INSTRUCTION

PUMP - charge (See Page 6-31)

1шт.

3

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

4шт.

4

133760C1

GASKET

- pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

11

NSS

NOT SOLD SEPARAT

COVER - end (Order 1976874C1)

1шт.

142398C91

SHIM KIT

- bearing

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

14

92841C1

SPLINED COUPLING,13T

GASKET - cover

1шт.

16

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, Hex Soc Hd, #8-32 x 3/8"

6шт.

17

142408C1

RETAINER

- servo

2шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1976874C1)

1шт.

19

1288962C1

PLUG

- hex socket, housing

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

9410356

PLUG

- 1/4 inch straight thread o-ring boss

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

- trunnion

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

6шт.

23

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

24

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

25

NSS

NOT SOLD SEPARAT

TRUNNION - pump (Order 1976874C1)

2шт.

26

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

27

142407C1

KIT

SLEEVE ASSEMBLY - servo

2шт.

28

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

29

224669C91

PISTON

ASSEMBLY - servo

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - light

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

37

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - piston

1шт.

41

24855R1

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

42

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

-back-up

2шт.

48

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

-113, 90 Duro, .549" ID x .103" Thk

2шт.
