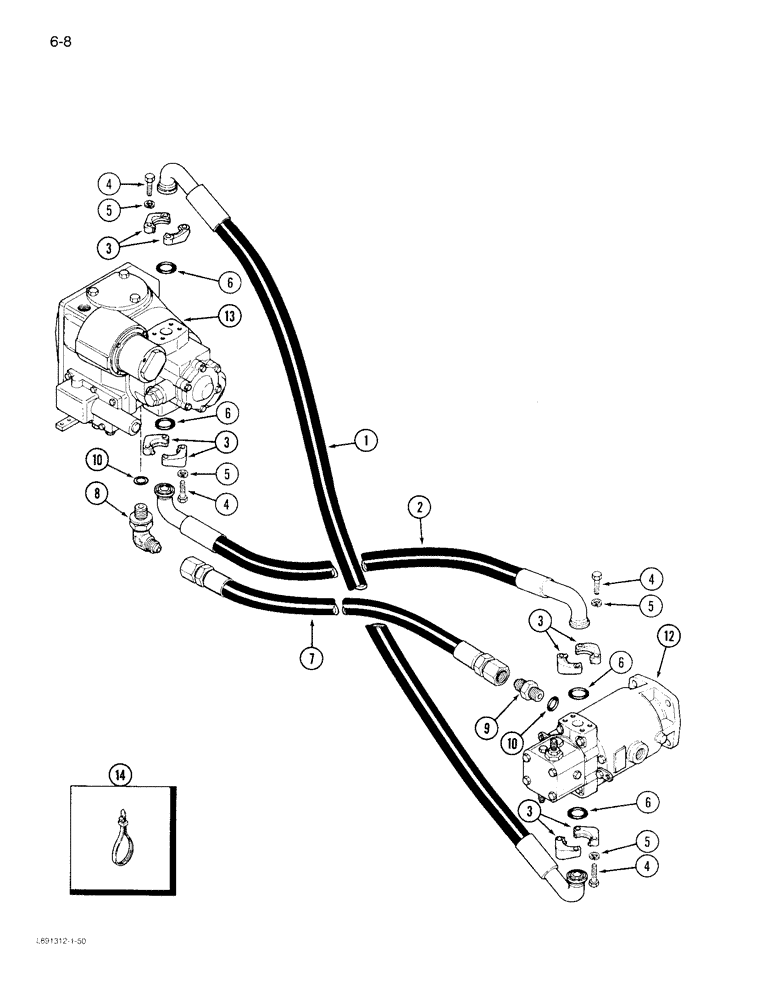

Запчасти Case IH 1844 (6-08) - HYDROSTATIC PUMP TO HYDROSTATIC MOTOR CIRCUIT (03) - POWER TRAIN

1

1260301C3

HOSE

- forward pressure

1шт.

2

1260300C3

HOSE

- reverse pressure

1шт.

3

877949C2

CLAMP

- hose

8шт.

4

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

5

492-11038

LOCK WASHER,3/8"

16шт.

6

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

4шт.

7

1339197C1

HOSE

ASSEMBLY - motor drain

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj. 1-1/16-12 inch flare x O-ring boss

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

10

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

2шт.

12

REF

INSTRUCTION

MOTOR - hydrostatic (See page 6-35)

1шт.

13

REF

INSTRUCTION

PUMP - hydrostatic (See Page 6-19 and 6-25)

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

4шт.
