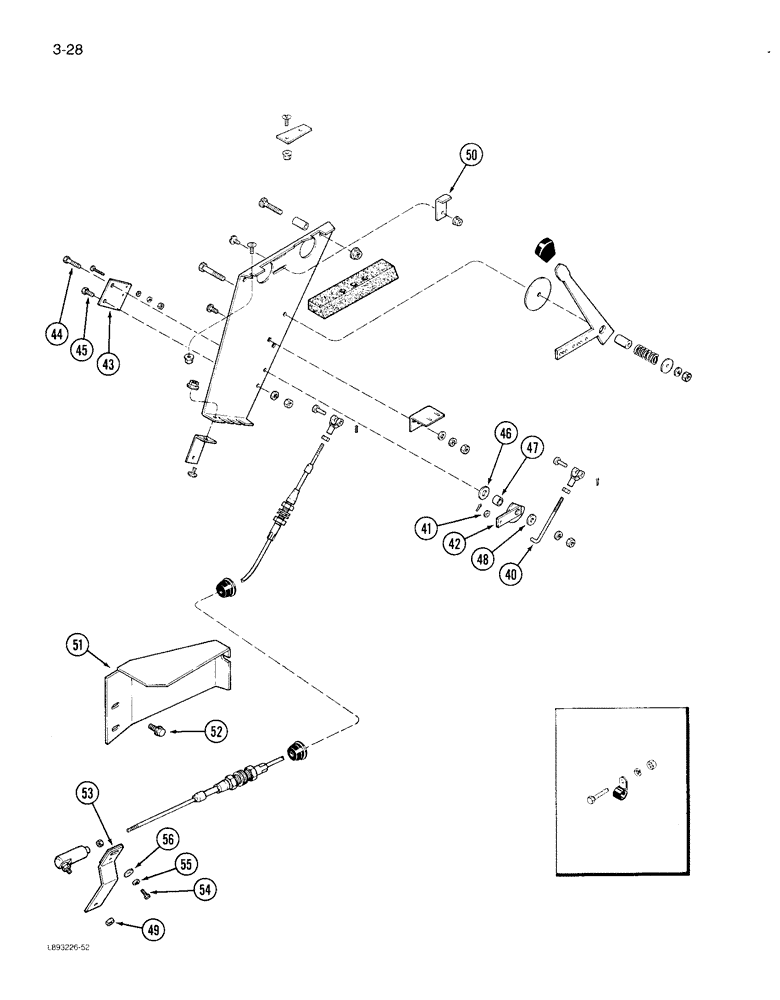

Запчасти Case IH 1844 (3-28) - THROTTLE CONTROLS, 1844 COTTON PICKER (02) - FUEL SYSTEM

40

1329372C1

ROD

- lever actuator

1шт.

41

495-31022

WASHER,#10

1шт.

42

1329368C2

LEVER

- engagement, switch

1шт.

43

1329371C1

PLATE

- switch mounting

1шт.

44

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

45

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

46

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

47

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

1шт.

48

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

49

425-114

NUT,1/4"-28, G5

1шт.

49

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

50

1338891C4

ANGLE

- stop, throttle

1шт.

51

1977034C2

SUPPORT

- rear, cable

1шт.

52

30848R2

BOLT,Hvy Hex, M10 x 1.5 x 20mm, Cl 10.9

- hex flange, 10 x 20 mm, Grade 10.9

2шт.

53

1977046C4

LEVER

- throttle, pump

1шт.

54

931465R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, 6 x 16 mm

2шт.

55

933833R1

LOCK WASHER,M6

2шт.

56

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

2шт.
