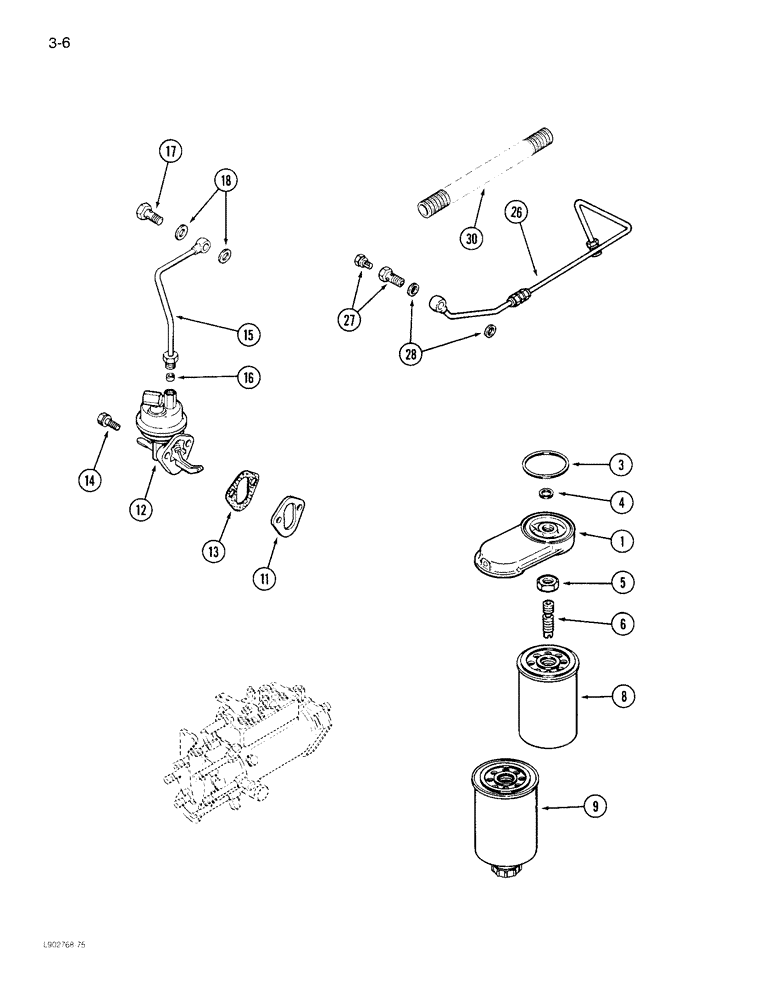

Запчасти Case IH 1844 (3-06) - FUEL FILTER AND LIFT PUMP 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - filter, fuel

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

11

J914284

SPACER

- lift pump mounting

1шт.

12

J918076

PUMP

ASSEMBLY - lift fuel (Replaces J904374)

1шт.

ref # 12 j918076 looks like illus on 3-8, j904374 looks like 3-6

1шт.

13

J914304

GASKET

- mounting, pump

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

15

J914753

FUEL TUBE,8 mm OD x 292.3 mm L

TUBE ASSEMBLY - fuel supply, lift pump (Replaces J907582)

1шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

18

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

26

J912783

FUEL TUBE,363.9, 84 mm L

TUBE ASSEMBLY - fuel supply

1шт.

27

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

28

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

30

1979552C1

FUEL TUBE,0.35 mm ID, 0.51 mm OD

CONDUIT - fuel tube

1шт.
