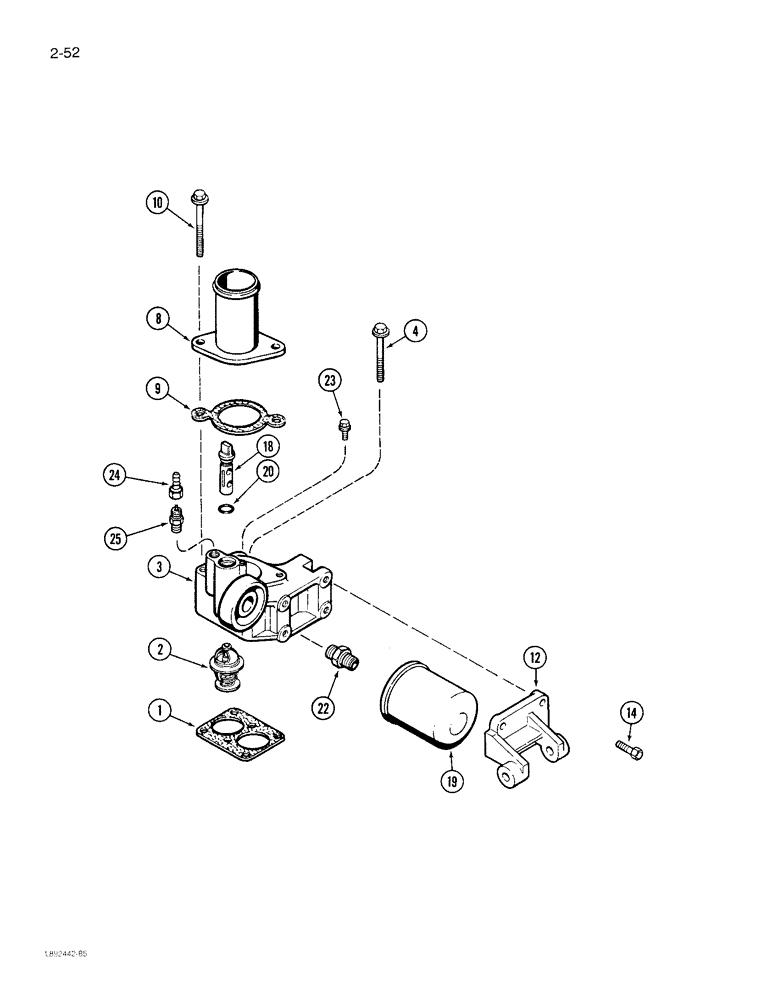

Запчасти Case IH 1844 (2-52) - THERMOSTAT HOUSING AND WATER FILTER 6TA-830 ENGINE (01) - ENGINE

1

J914310

GASKET,0.8mm Thk

GAKSET - thermostat housing

1шт.

2

J907242

THERMOSTAT

- engine coolant, 90 degree C

2шт.

3

J913708

HOUSING

- thermostat

1шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 80 mm

2шт.

8

J912800

CONNECTION

TUBE - outlet

1шт.

9

A77705

GASKET

- outlet tube, water (Replaces J914309)

1шт.

10

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 95 mm

2шт.

12

J918544

SUPPORT

- mounting, alternator (Replaces J911480)

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

4шт.

18

J912837

COCK

VALVE - shutoff

1шт.

19

A77544

FILTER

- water

1шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

22

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- filter

1шт.

23

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

24

J911925

COUPLING

- hose

1шт.

25

J911901

VALVE, CHECK

VALVE ASSEMBLY - check

1шт.
